ECS L4S8A SiS648 mainboard gallery (2)
Overclocker 10 Oct 2002

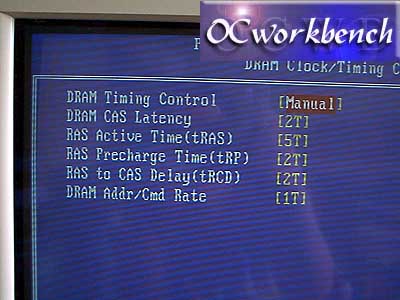

Below are screen shots of the production BIOS of L4S8A v1.0 dated 7 Oct 2002. We set it to CAS 2, 2-2-5 and 1T cmd for aggressive timings.

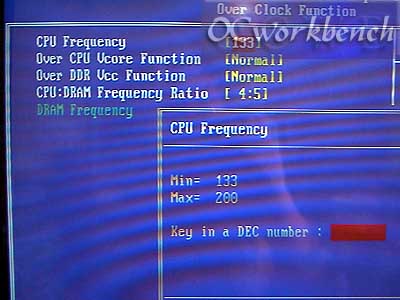

After much request from users, ECS official BIOS now includes 1Mhz FSB steppings for you to overclock your CPU. The range is 100 ~ 200 at 1mhz stepping

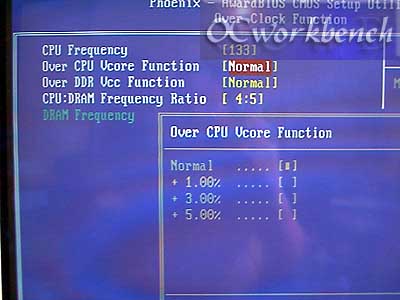

Another surprise, CPU Vcore overvoltage make its debut on L4S8A too. You can increase CPUs default voltage by +1%, +3%, +5%

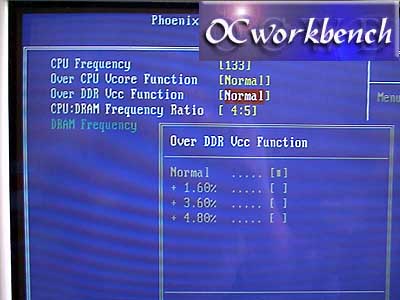

Whoa, DDR voltage can also be increased for o/c stability. +1.6%, +3.6%, +4.8% are selectable

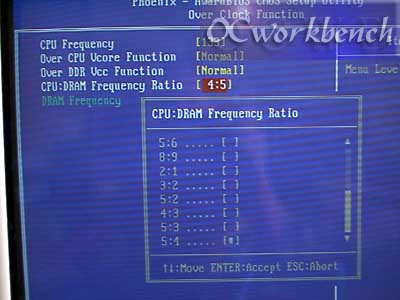

A long list of ratios are available for you to run async cpu:mem mode. We select 4:5 which means that it is running the CPU at 133 (533), memory is running at 166 (DDR333).
