ECS L4S8A SiS648 mainboard gallery (1)
Overclocker 10 Oct 2002

The package comes with a supporting CDROM, IDE cables.

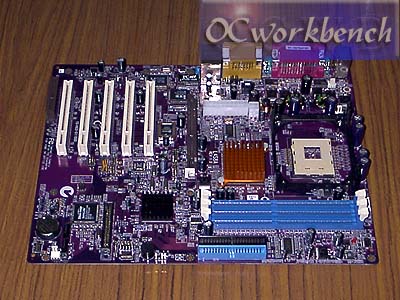

The mainboard

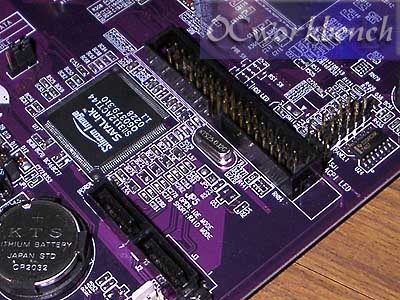

2 SATA connectors are supported by the SiliconImage SATAlink Sil3112 chipset. Next to it is the floppy connector.

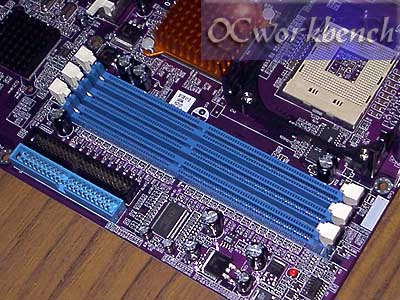

3 DIMM Slots supporting DDR200/266/333 and unofficial DDR400 DIMMs

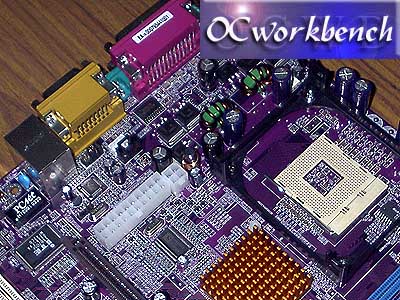

ATX 2.03 PSU connectors and P4 Socket 478 which is positioned similarly to the SiS 648 Reference board. At the central of the photo you will see the ICS 952005 chipset that is responsible for the 1Mhz FSB steppings.

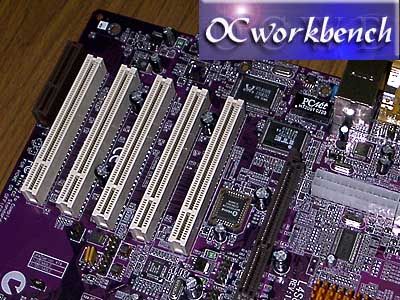

5 PCI, 1 AGP and 1 CNR slot. An 8x AGP Slot. Behind the LAN port is the CMI 9738 audio chipset. Below the 3rd PCI slot are two 1394 connectors for connecting to external brackets (not provided in package). Near to the AGP Slot are two USB 2.0 connectors which can be connected to external brackets for 4 more USB ports (total of 6 USB ports can be supported on board, 2 at backplate, 4 connected through brackets)

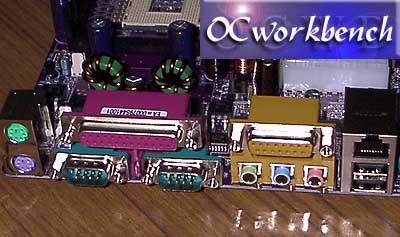

Back panel with 10/100 Mbps LAN and 2 x USB 2.0 ports
