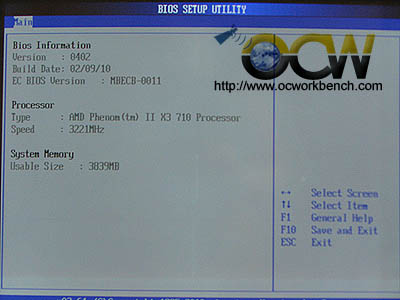

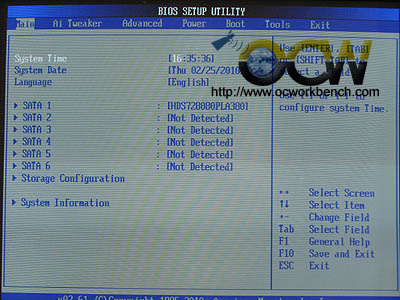

The BIOS SETUP Screen	The BIOS used is 0402 dtd 9 Feb 2010. The CPU used is Phenom II X3 710

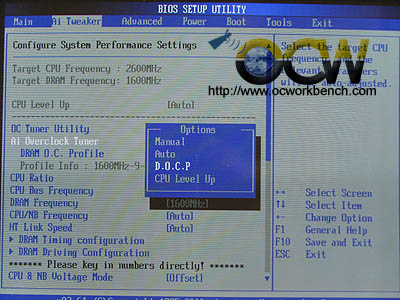

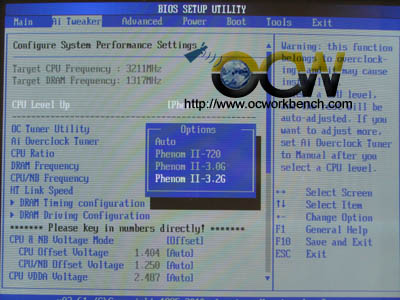

Under Ai Tweaker, you can use immediately overclock it to a Phenom II 720, Phenom II 3.0G or Phenom II-3.2G by just selecting the preset settings. The voltages and settings gets adjusted automatically for the CPU to run at the rated speed.	Alternatively, you can choose to overclock using D.O.C.P or DRAM OC profile

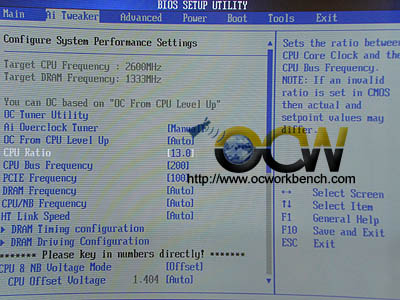

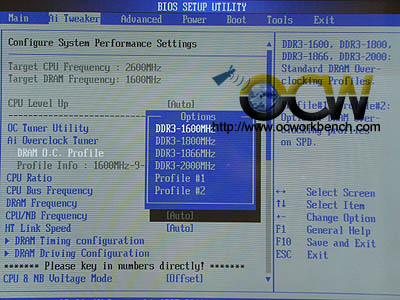

In this case, you can choose to run the board based on the kind of RAM that is installed. In this case, our Kingston DDR3-2000 is detected and the board is capable of overclocking the board to run the ram at that speed. The CPU clk, voltages will be adjusted to make it run the ram at the rated speed of SPD profile	CPU Ratio/multiplier

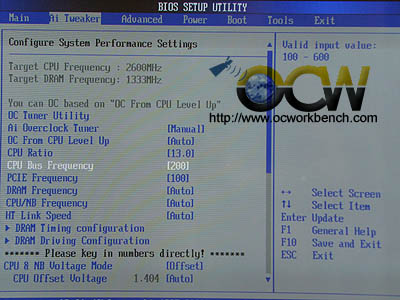

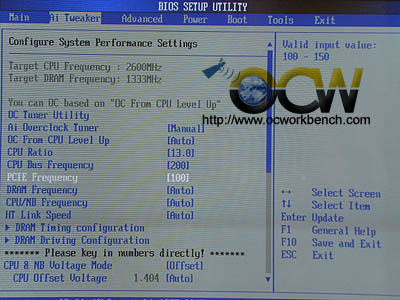

CPU Clk can be set from 100MHz ~ 600MHz	PCIe Freq can be set from 100MHz to 150MHz

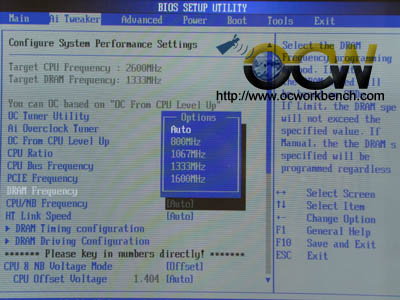

DRAM frequency can be set to run in ASYnc mdoe to your CPU CLK at DDR3-800 to up to DDR3-1600 from the pull down menu	CPU/NB Freq selections
