ASrock 939Dual-SATA2 ULi M1695 Intro 1/6
Bluetooth 20 Jul 2005

 Pricing of
7800GTX

>>>

Package

** You can now win this board by checking out http://www.ocworkbench.com/asrock

We have reviewed the ULi M1695 reference board sometime ago. If you remember, ULi M1695 paired with its southbridge M1567 is the first Athlon 64 / FX / X2 supporting chipsets allowing you to tap the power of your old high end AGP 8x graphics card at native speeds. On top of that, it also supports a PCIe x 16 slots for graphics cards. With its T.G.I technology, you can add on another PCI graphics card and do a 6 monitor screen surround video output. The chipset was quite overclockable and performed as good as NF4 Ultra boards and SLI.

ASrock, an innovative manufacturer of mainboard chose this chipset and added on new features to it. Based on the same chipsets, ASrock added in a Jmicron SATA II controller to boost the HDD performance. Not only that it has a FUTURE_CPU_PORT. It is the first board ever made that is future proof - upgradeability to Socket M2 through an upgrade slot (not available yet).

ASrock 939Dual-SATA2 is a full fledge ATX board based on the ULi M1695/M1567. It supports the Socket 939 AMD Athlon 64x2, 64, FX, Sempron processors with a FSB of 1GHz of HTT. It supports cool n quiet, 4 GB of Dual channel DDR 400. It has 1 AGP 8x, 1 PCIe x16 slot,1 PCIex1 slot and Future CPU Upgrade Slot. This board offers 2 IDE channels for connecting 4 IDE HDDs and 2 SATA ports for SerialATA 1.5Gb/s, RAID 0,1,JBOD. There is another SATA II 3.0Gb/s SATA connector for a third SATA HDD. Audio wise, 7.1 ch audio is supported using ALC850 codec. It has 4 ready to be used USB 2.0 ports with 4 more thru expansion cables. There is no GbE but it is equipped with  Fast Ethernet LAN.

Finally, this board offers voltage selections to the VDIMM, VCore. It also has settings for ASync PCI-E, PCI option. This allows you to increase the HTT without affecting the PCI-E and PCI frequency.

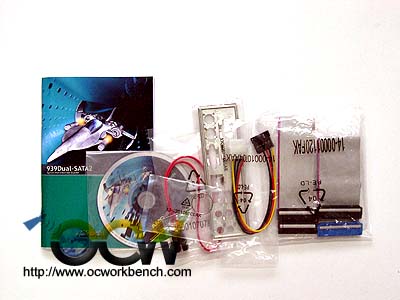

The package comes with  cables, CDROM and manual.

Specifications

CPU - Socket 939 for AMD Athlon 64X2, Athlon 64FX, Athlon 64 and Sempron processor
- Supports HyperTransport Technology
- Supports AMD Cool‘n’Quiet Technology
Chipset - Northbridge: ULI M1695
- Southbridge: ULi M1567
Hybrid Booster - CPU Frequency Stepless control
- CPU Vcore Adjustment
- AGP/PCI frequency control
- ASRock U-COP
- Boot Failure Guard (B.F.G)
Memory - DIMM slots: 4
- Max. capacity: 4GB
Slots - 1 x PCI Express x16 slots
- 1 x PCI Express x1 slots
- 1 x AGP Slot
- 1 x FUTURE_CPU_Port
- 3 x PCI slots
VGA - n/a
Audio  - Realtek ALC850 8channel AC'97 audio codec
LAN - Realtek RTL8201CL 10/100 Ethernet LAN PHY
- 802.3u, WOL supported
Connector - 2 x SeialATA 1.5Gb/s connectors
supports RAID,0,1,JBOD, SATA_HDD
- 2 x ATA 133/100/66 IDE connectors ( supports 4 x IDE devices)
- 1 x SerialATA 3.0Gb/s SATA connector
- 1 x Floppy connector
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- 4 pin ATX 12V power connector
- Power/IDE LED connector
- CD audio in header
- Front panel audio connector
- 2 x USB 2.0 port pin header (to support extra 4 USB 2.0 ports)
- 1 x Game/MIDI port pin header
Rear Panel I/O ASRock 8CH I/O
- 4 x USB2.0 ports
- 1 x RJ45 LAN port
- 1 x Serial port (COM1)
- 1 x PS2 Keyboard connector
- 1 x PS2 Mouse connectors
- 1 x Parallel port (LPT1)
- 2 x Audio ports ( Line In/Out, Mic In)
BIOS Feature - 2Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP
Support CD - Drivers, Utilities, AntiVirus Software
- SATA driver and utility
Accessories - Quick Installation Guide, Support CD, I/O shield
- Floppy/ATA 133 cables
- 1 x SerialATA data cable
- 1 x SerialATA 1-to-1 power cable
Form Factor MicroATX, 244mm x 224mm
Certifications FCC, CE, MS WHQL
