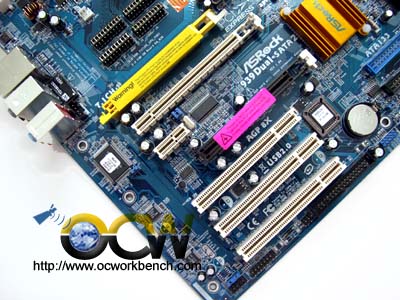

The board comes with 3 PCI, 1 AGP 8x, 1 PCI-Ex1 slot, 1 PCI-Ex16 slot, that allows for future expansion card. Right behind the PCI slots are the LAN controller RTL8201 and ALC850 codec. Further to the right are the 3 phase power and power connectors.

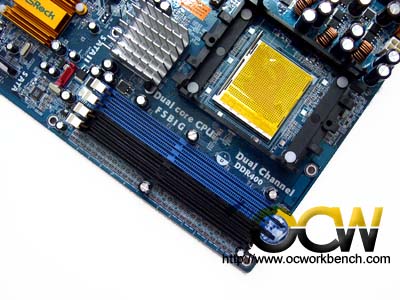

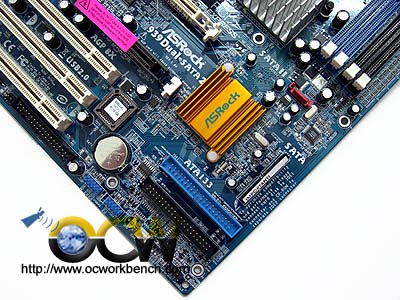

At the bottom of the board, we see 4 DIMM slots supporting up to 4GB of DC-DDR400. There are 2 IDE ports supporting up to 4 IDE devices and 2 SATA ports are also supported by the south bridge. The 2 SATA ports can be configured to work in a RAID 0,1,0+1 array. The red SATA II port is supported by the PCIe based Jmicro chipset. At the middle of the board is a yellow coloured slot and 4 rows of jumpers. Those are used for Future CPU Upgrade to Socket M2.

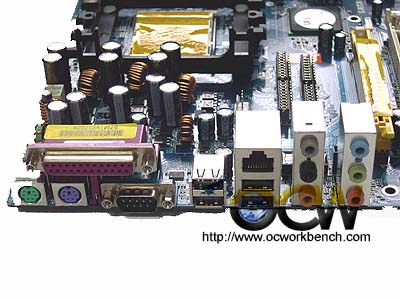

The back panel consists of PS/2 Keyboard and Mouse, 1 Com ports + 1 Parallel port, 4 USB ports, 1 x LAN port and 8 ch audio ports.
