Shuttle SB51G i845G SFF gallery (2)
Overclocker 14 Oct 2002

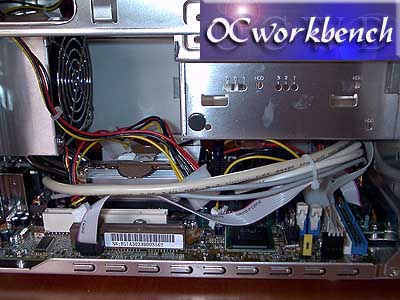

The internal after opening the casing. 1 AGP Slot and 1 PCI slot, 2 DIMM slots (DDR333/266/200), IDE connectors - 2 x ATA100

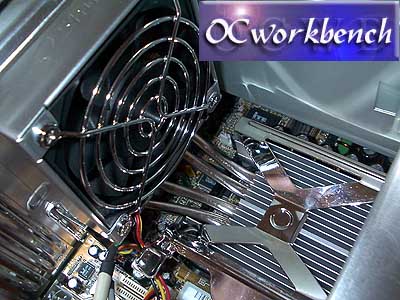

The heatsink pipe (same as the one used on SS40 and SS51G)

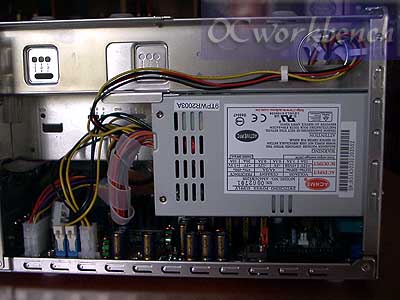

The Box from another view showing the 200W Power Supply

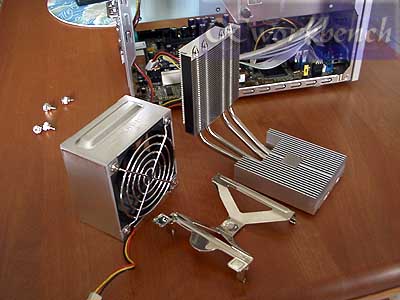

The heatsink pipe with CPU clip and fan. Installation is very simple if you know how to do it properly. To install it, push down the clip the sides into the grooves on the retention unit of the Pentium 4 Socket.

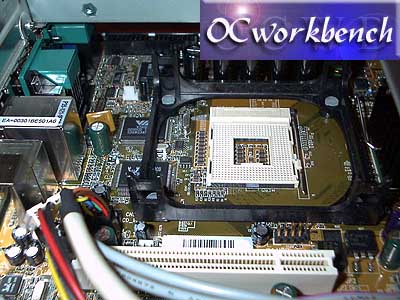

Although SB51G is based on Intel 845GE chipset, there is the VIA VT6306 is used (in diagram) to support 1394 ports.
