BIOS Screen shot 1 of
Gigabyte GA-890GPA-UD3H AMD 890GX+SB850 mainboard
Bluetooth 28 Feb 2010
BIOS 1
|
 |
 |
|

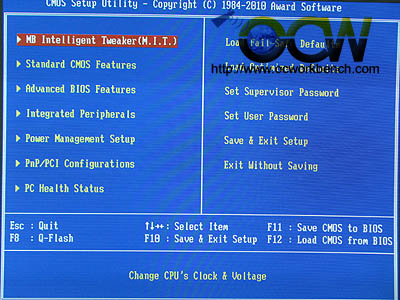

The BIOS SETUP Screen |

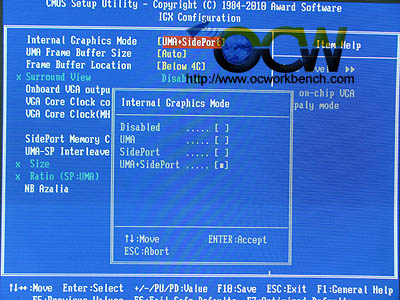

Over here you can select UMA only, Sideport only or UMA +Sideport
for the internal graphics |
|
 |
 |
|

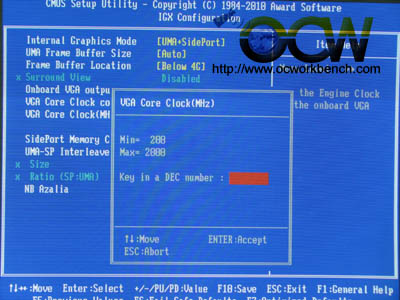

The GPU clock default is 700MHz for ATi Radeon HD 4290. It
can be tuned up to 2000MHz on this board. 1GHz is usually require more
voltage applied to the NB |

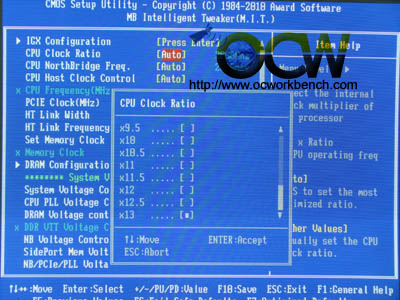

CPU Multiplier |
 |
 |
|

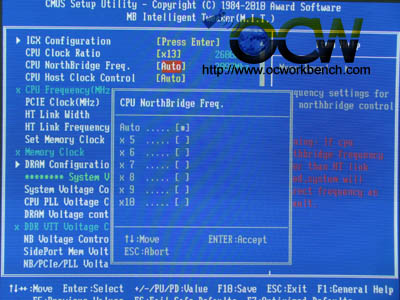

The NB Frequency can be lowered to achieve better stability
at higher CPU CLKs |

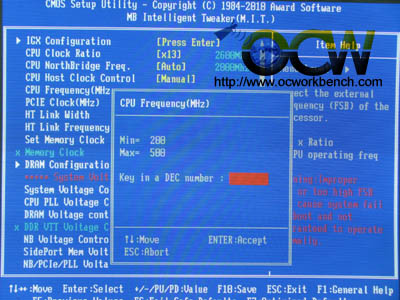

CPU Freq can be adjusted from 200MHz to 500MHz |
