Cinebench 10 benchmarks of ECS H55H-CM Intel H55 Clarkdale Mainboard
Bluetooth 3 Jan 2010

Benchmarks - CineBench10 (64 bits)

CINEBENCH is a free and useful benchmarking solution for Windows and Mac OS based on the powerful 3D software CINEMA 4D. CINEBENCH is a real-world test suite that assesses your computer's performance capabilities. MAXON CINEBENCH is based on MAXON's award-winning animation software, CINEMA 4D, which is used extensively by studios and production houses worldwide for 3D content creation.

MAXON CINEBENCH runs several tests on your computer to measure the performance of the main processor and the graphics card under real world circumstances. The benchmark application makes use of up to 16 CPUs or CPU cores and is available for Windows (32-bit and 64-Bit) and Macintosh (PPC and Intel-based).

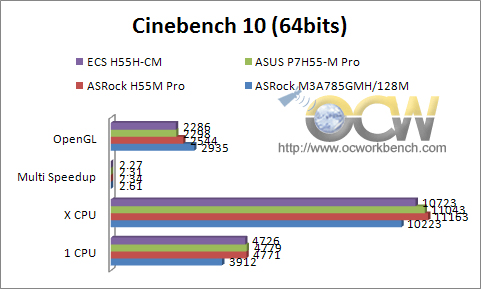

In this test, we compare the 3 boards again and against our overclocked AMD Phenom II X3 710 system with integrated graphics. From the chart below, it can be clearly seen that the Intel H55 performs better no matter whether it is single core or dual core but in OpenGL test, the results of the AMD system is slightly better than the rest.

The ECS H55H-CM seems to be at a disadvantage due to it's adherence to the standard clock of 133.0MHz for it's BCLK and a lower clock timing as we are unable to tune it tighter (no options) to match the ASRock and ASUS board.
