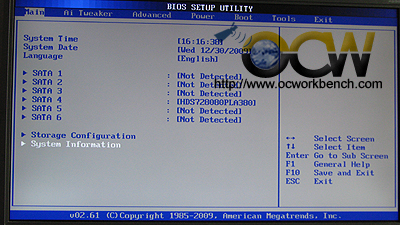

The BIOS SETUP Screen |

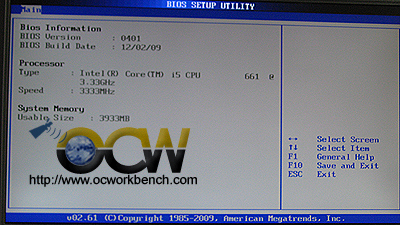

The BIOS used is 0401 dated DEC 02 2009. Processor on
board is a Core i5 661 @ 3.33GHz. |
|
 |
 |
|

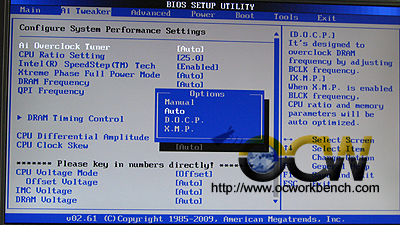

AI overclocking tuner can be set to run in auto mode, DOCP or
XMP. DOCP basically overclocks the BCLK to match the highest DRAM clk while
XMP adjusts CPU multiplier and match it to the XMP data of the RAM modules
installed. |

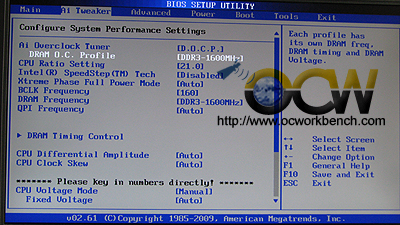

With DOCP, only one OC Profile is available which is
DDR3-1600 |
 |
 |
|

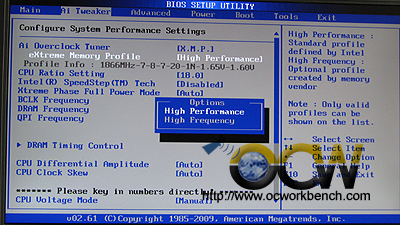

Alternatively, if you choose XMP profile, you can select high
performance or high frequency. Note that the profiles works depending on CPU
and Memory combinations. |

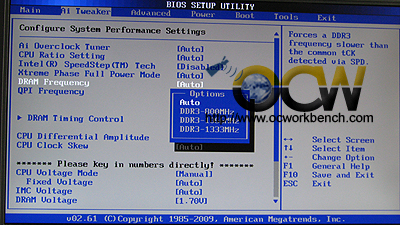

If you were to manually select the RAM, the board does not
support multiplier for higher RAM speed. The maximum is DDR3-1333 for a BCLK
of 133MHz. If you want DDR3-2000, you would have to overclock your processor
to BCLK 200MHz. |
 |
|
|

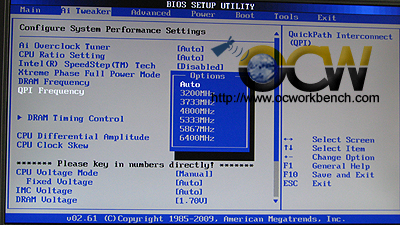

QPI Frequency can be set A select of frequencies of up to
6.4GHz can be selected. |
|
