Gigabyte GA-P55-UD6 Mainoard BIOS Screen shots 1

The screen shots are taken with board installed with a Intel Core i5 750 processor (2.66GHz).

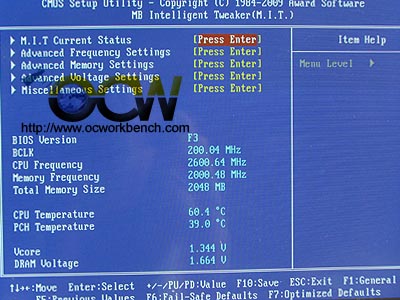

This is the main bios screen where the sub functions can be accessed form here. The most important option would be the M.I.T	Under M.I.T, It shows you different sub menus and a summary of the BIOS, BCLK, Freq, Memory, temperature, voltages etc.

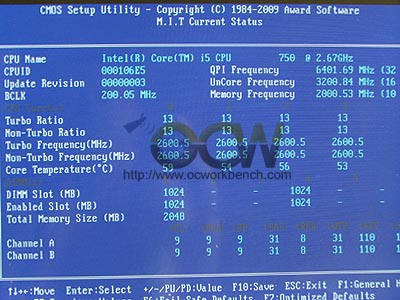

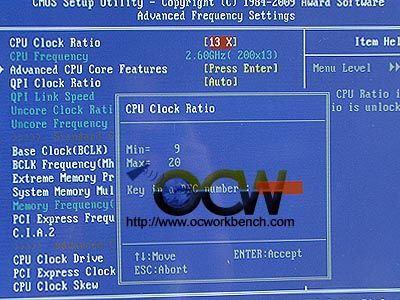

Once you click on MIT current status it shows you more details about your configuration.	CPU Multiplier can be selected in the CPU clock ratio option. When we set the memory to run at DDR3-2000, the BCLK automatically sets itself to 200MHz and gave us a 13x multiplier.

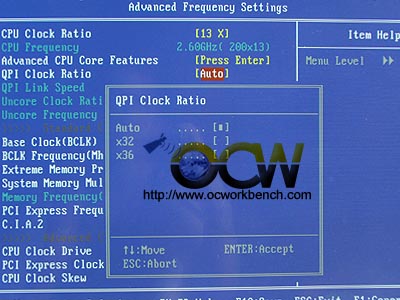

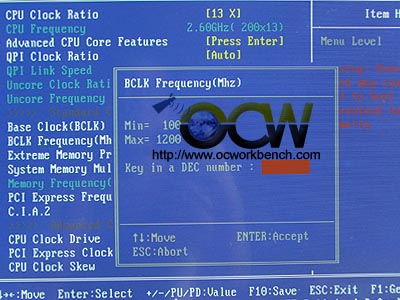

Over here you can set the QPI Clock ratio of 32x or 36x	BCLK can be set between 100MHz to 1200Mhz.
