Chipsets on board Gigabyte GA-P55-UD6 Intel P55 Lynnfield mainboard Review
Bluetooth 30 Aug 2009

Chipsets 1

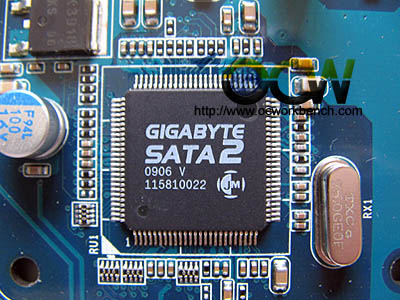

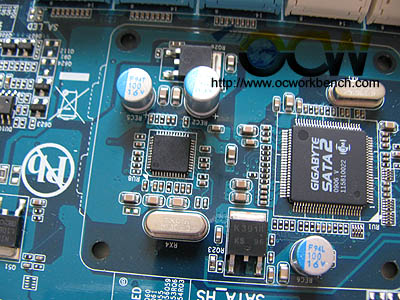

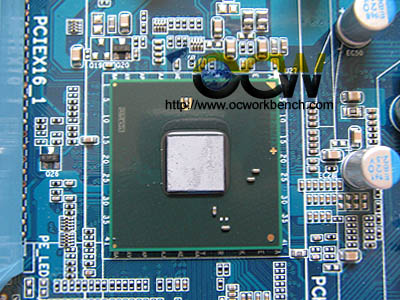

Intel P55 single chipset. All the functions of 6 SATA2 is controlled here, so is USB etc.	2 x Jmicron controller chip underneath the heatsink. The first is labeled Gigabyte Sata2 while the second maintains the imprint of JMB362

This chipset provides an additional 2 SATA2 ports of the 4 white ports	This chipset provides an additional 2 SATA2 ports of the 4 ports

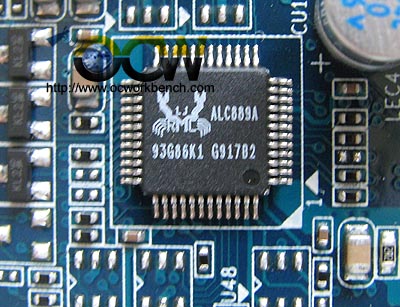

Realtek ALC889A audio codec	Dual GbE controller from Realtek RTL8111D

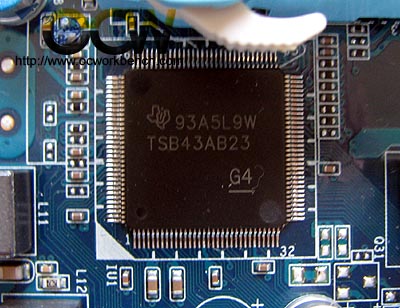

Texas Instrument 1394 controller
