ECS X58B-A Intel X58+ICH10R Intel Core i7 Mainboard Review - BIOS Screen shots
Bluetooth 6 March 2008

BIOS 1

The screen shots are taken with board installed with a Intel Core i7 965 (3.2GHz).

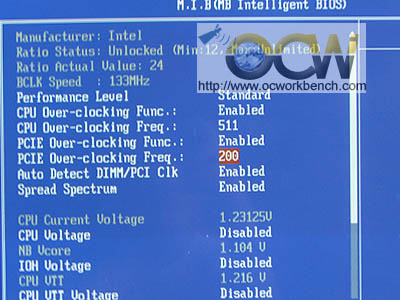

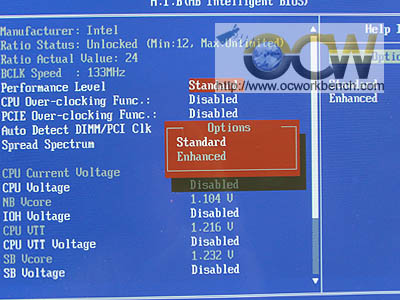

The board can be set to run in standard mode or enhanced mode. In standard mode, the CPU will auto speed up as seen in CPU-Z. With Enhanced mode, you can fix the CPU multiplier.	Over here, we can see that the CPU and PCIe overclocking mode is enabled. The CPU Freq can be increased to a maximum of 511MHz while the PCIe bus freq can be increased to 200MHz Max.

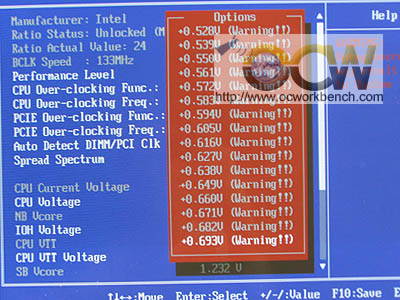

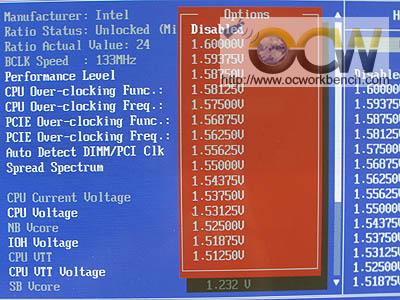

CPU voltage can be increased up to 1.60v	NB Vcore voltage can be increased by up to +0.6933v of default

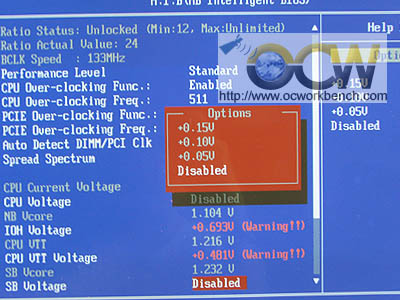

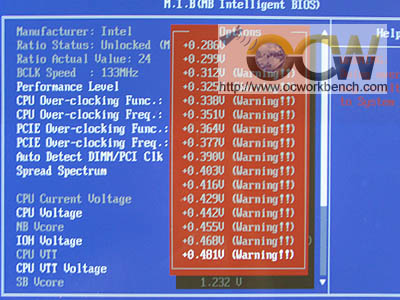

IOH Voltage an be increased by up to +0.481v	CPU Vtt can be increased by up to +0.15v
