ECS X58B-A Intel X58+ICH10R Intel Core i7 Mainboard Review - BIOS Screen shots
Bluetooth 6 March 2009

BIOS 2

The screen shots are taken with board installed with a Intel Core i7 965



DRAM Frequency can be set to run from 800MHz, 1066MHz, 1333MHz or 1600MHz. If you enable XMP profile, it will be able to run according to what the RAM specifies.	South bridge voltage can be increased up by +0.945v

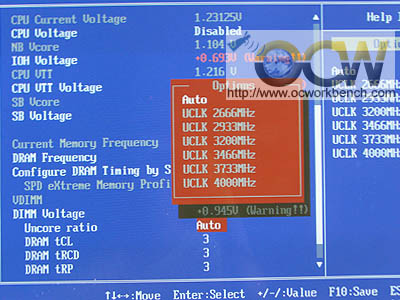

Uncore Ratio or Frequency can be set from auto to 2666 ~ 4000MHz as seen in the screen shot above.	Ram timings can be set manually for CAS, trd, trp, trcd and dram cmd rate or 1T or 2T.
