BIOS Screen shots 1 of Biostar TA785GE 128M AMD 785G+SB710 Mainboard Review
Bluetooth 30 Sep Aug 2009

BIOS 1

The screen shots are taken with board installed with a AM3 Phenom II X3 710 processor.

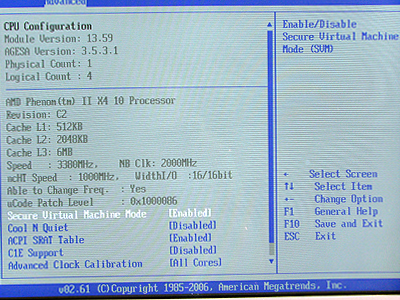

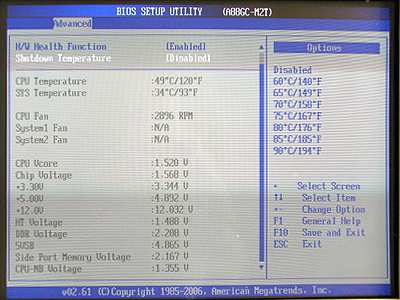

The is main page showing the processor & memory configuration. The BIOS is dated 1 Sep 2009. Advance clk calibration can be enabled in this menu	In this screen, you can have a bird's eye view of the voltage levels of the processor, sideport, HT voltages etc and fan speed.

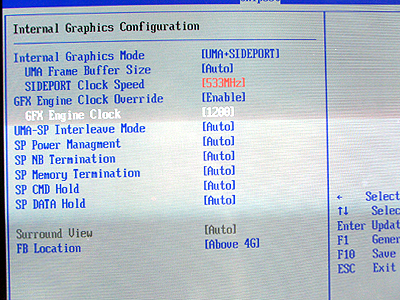

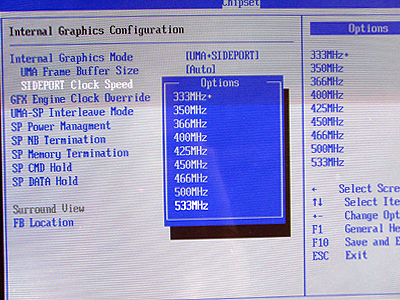

To enhance the speed, sideport memory can be selected accordingly from 333MHz+ to 533MHz. (DDR2)	The GFX engine clock or GPU clk defaults at 500MHz. In the bios, it allows you to tune it up to a maximum of 1200MHz.

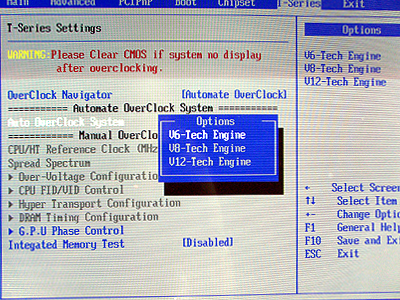

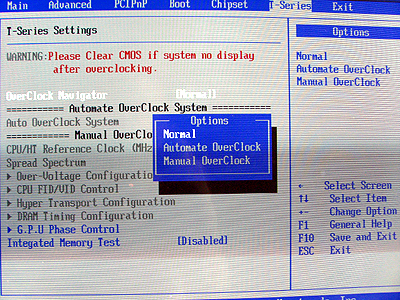

For overclocking, you can select to run it in automated overclock or manual overclock mode	With automated o/c mode, you can choose V6, V8 or V12 Tech Engine. These are preinstalled settings that will boost the system performance by increasing the CPU CLK and voltage levels.
