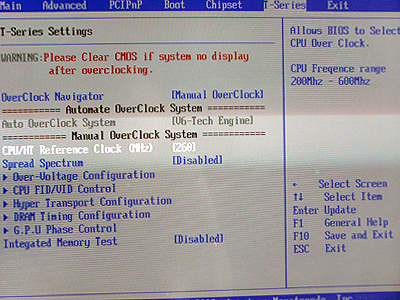

| CPU CLK default is 200MHz. The
range provided allows it to be tuned up to 600MHz |

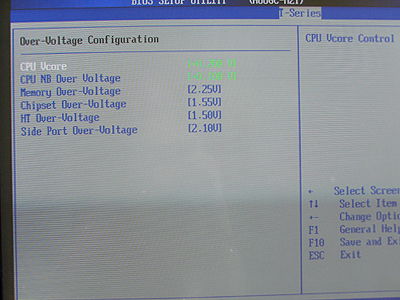

Under the over voltage
options, these are the various ranges that the board bios supports :
CPU Vcore +0.5v - +1.45v
CPU NB over voltage +0.5v - +1.45v
Memory OV 1.95v - 2.6v
Chipset OV 1.25v - 1.55v
HT OV 1.2v - 1.5v
Sideport OV 1.8v - 2.1v |
 |
 |

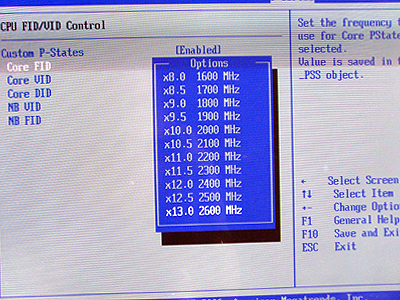

| Over here you can also change
the settings of the multiplier and the voltages applied to the processor |

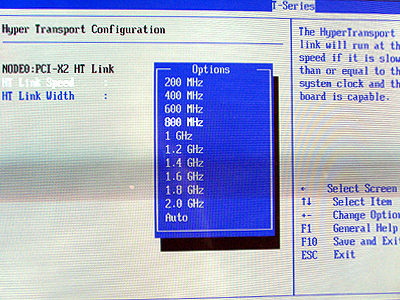

For overclocking to high CLKs,
the Hypertransport should be lowered so that it won't exceed the 2GHz limit
by a lot (which will result in instability). |
 |
 |

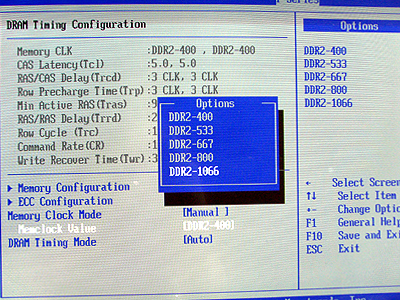

| The MemClk value can be chosen
from here. In our case, we run the system using 2GB Kingston DDR2-1066 a CAS
5-7-7-24-2T |

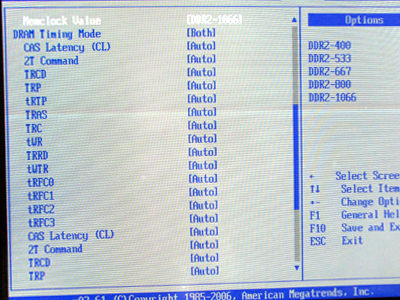

If you prefer, you could
tighten the timings of the DDR2 modules. |
