BIOS Screen shots 3 of ASRock
M3A785GMH/128M AMD 785G+SB710 Mainboard
Review
Bluetooth 6 Aug 2009
BIOS 3
The screen shots are taken with board installed with a AM3 X3 710
processor.
|
|
|
| |
|
 |
 |

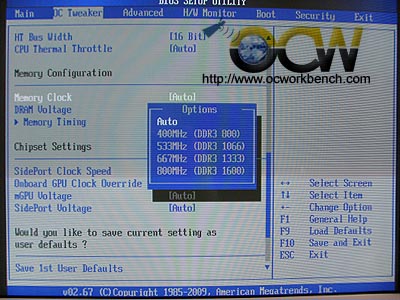

| Memory clock can be set to
operate at DDR3-800, 1066, 1333 or 1600. DDR3-1600 is achievable thru
overcooking the CPU Freq with a ratio |

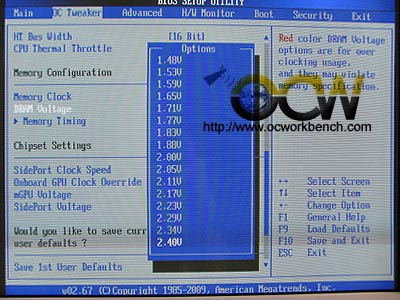

DRAM voltage can be increased
to 2.40v |
 |
 |
| Ram timings adjustments. CAS
latency, trp, tras, trcd, cmd rate can be set |

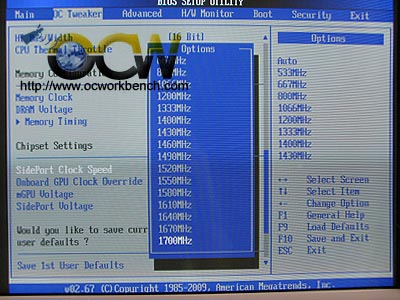

The Sideport memory timing can
be adjusted here to up to DDR3-1700MHz. When you see 533MHz or 667MHz for
Sideport in Ati Catalyst manager, that means it is actually running at
DDR3-1066 or DDR3-1333 respectively. |
 |
 |

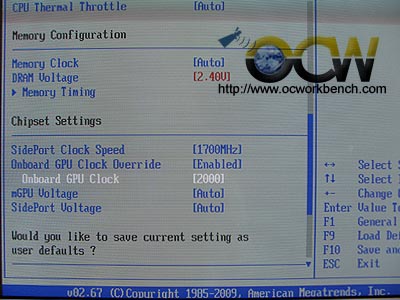

| the iGPU clk can be adjusted
from 500MHz to 2GHz. A nice overclock is around 900Mhz-1GHz. |

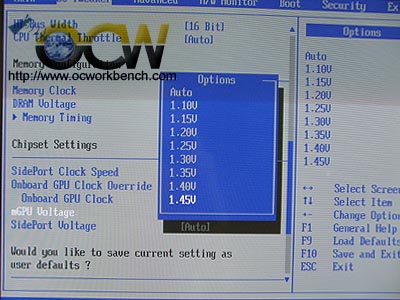

Integrated GPU supplied
voltage. For overclocking, 1.45v is the best bet to achieve close to 1GHz. |
