Jetway M2A692-GDG (AMD 690G) Mainboard Review Intro 1/5
Bluetooth 28 Feb 2007

 Pricing of
ATi RD480

>>>

Introduction

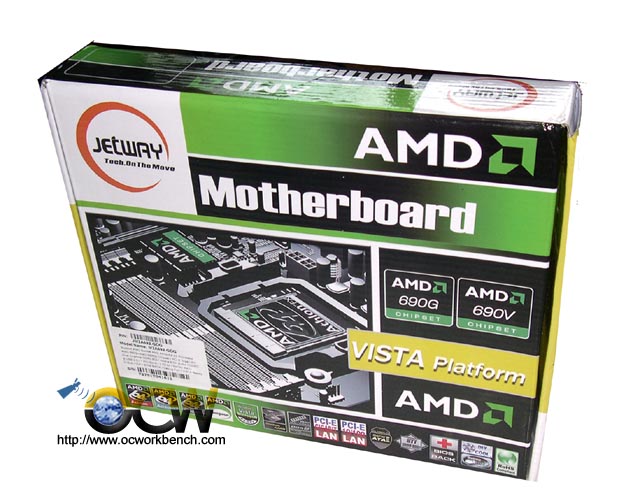

Jetway throws its towels into the integrated mainboard market by introducing its AMD 690G board - JETWAY M2A692-GDG mainboard. This mainboard is a mATX board and fits the AMD Athlon 64FX/Athlon 45 X2 Dual -Core/Athlon 64/ Sempron processors up to 1GHz HT interface speed.

The AMD 690G incorporates the ATi Radeon X1250 graphics with a core freq of 400MHz and 4 shader pipeline support DX9 compliant 2d/3D graphics processor. It has a maximum DAC of 400MHz and supports resolution of up to 2560x1600 and refresh rate up to 85Hz. It also support AVIVO and multiple display configurations CRT+DVI-D or HDMI.

The board also suports DDR2-800/667/533/400 DDR2 with dual channel support. It can installed up to 16GB of ram with both DIMM slots filled up. Onboard audio is a Realtek ALC880 HDA and the board comes with integrated GbE.

The mainboard also comes with 1 VGA, 1 DVI and 1 PCIex16 for graphics. It also supports HDA, 10 USB 2.0, 1 IDE channel, 4 SATAII with RAID, GbE.

On top of that, Jetway throws in its special features like CPU Smart Fan, CPU Vcore 7 shift, BIOS Back function using SPI for BIOS backup and CPU Thermal Throttling Technology.
