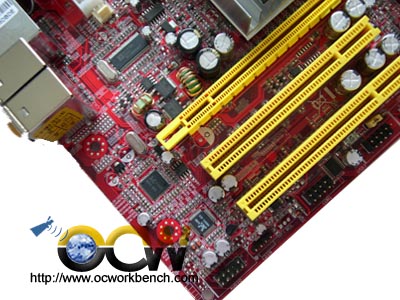

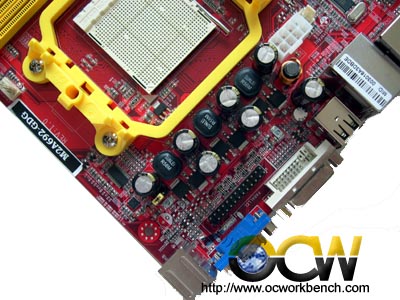

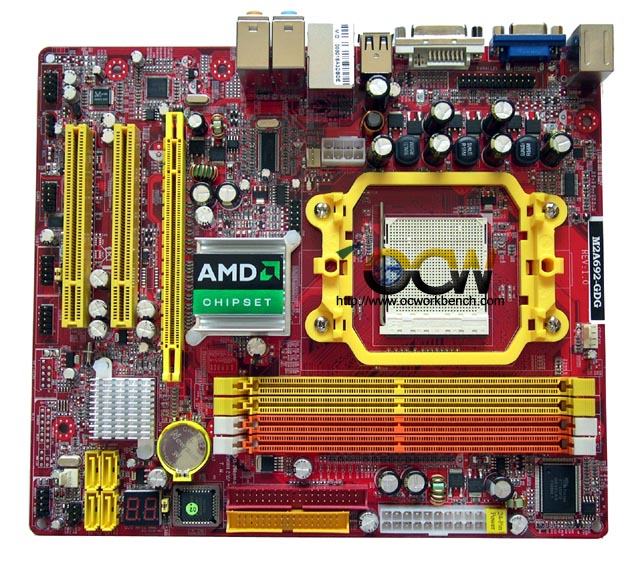

Finished in read, this mainboard looks familiar. In fact, a number of makers are using the same OEM design for their own brands. Firstly, lets take a look at the mainboard. On the top left corner, we can see the audio codec and LAN PHY. There are 2 PCI slots 1 PCIe x16. Towards the centre we can see the CLK gen, there is also a 8 pin AUX for power connector. On its right is a 3 phase power circuit.

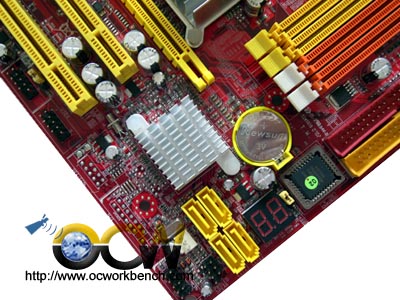

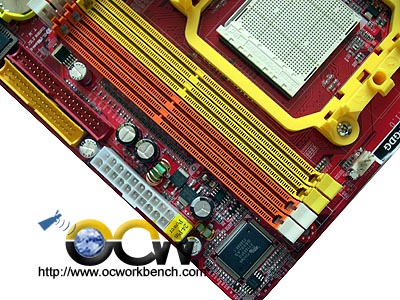

On the side, we can see the connectors for USB bracket. On the bottom left corner is the front panel connector, bios, 4 SATAII ports, debug led, 1 IDE, 1 floppy connector and the 24 pin power connector. 4 DIMM slots coded in yellow and orange sits right below the CPU socket.

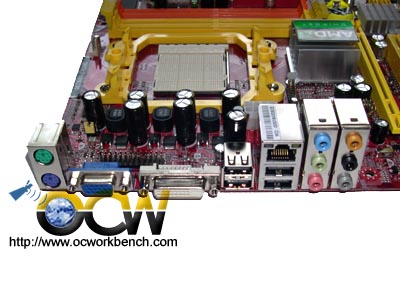

The back panel consists of PS/2 Keyboard and Mouse, 4 USB ports, 1 VGA, 1 DVI, 1 x GbE LAN port and 8 ch audio ports.
