Jetway I35P-SG Intel
P35/ICH9 Mainboard Review
- System Clock and Sandra XII
Bluetooth 8 Oct 2007
|
Pricing
of
Intel P35 boards
>>> |
|
Benchmarks
CPU

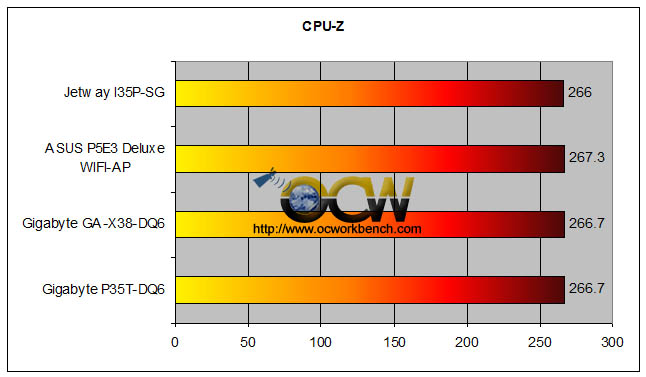

FSB is still a valid and important
criteria when judging systems performance. We measured the
CPU FSB and
documented it as below. Both boards runs at 266.7MHz right on the dot.
The Gigabyte GA-P35T-DQ6 is paired up with 2GB of Samsung DDR3-1066 at CAS
7-7-7-20 while the GA-X38-DQ6 is with 2GB Corsair DDR2-1066 at CAS 5, 7-7-24.
The ASUS P5E3 Deluxe is paired up with 2GB of Samsung DDR3 memory running at CAS
7-7-7-20. Jetway I35P-SG is paired up with 2GB of Corsair TWINX2048 running
DDR2-800 at CAS 5-5-5-15 2T.
Sandra XII tests
From the chart, we can see that the Jetway seems to
be at a disadvantage as it's BIOS does not allow us to run the memory at ASYnc
DDR2-1066 mode. The RAM is run at DDR2-800 mode. Although the memory is run at a
lower speed, that does not really impact the CPU processing. The only impact
would be due to the lower clock speed at 266.0MHz. As can see from the chart
that the Jetway I35P-SG is slightly slower, compared to the 3 boards in
comparison.
|
Sandra XI |
Gigabyte GA-X38-DQ6 |
Gigabyte P35T-DQ6 |
ASUS P5E3 Deluxe WIFI-AP |
Jetway I35P-SG |
|
|
|
|
|
|
|
Memory Bandwidth |
5732/5723 |
5369/5407 |
5746/5720 |
5565/5544 |
|
Arithmetic - Drystone ALU |
27284 |
26501 |
27784 |
27138 |
|
Artithmetic - Whetstone iSSE3 |
18626 |
18715 |
18888 |
18820 |
|
Multimedia - Int x8 iSSE3 |
162254 |
160811 |
162593 |
161227 |
|
Multimedia - Float x4 iSSE2 |
88341 |
87878 |
88520 |
87797 |
|
Disk - Drive Index |
47 |
46 |
47 |
47 |
|
Disk - Random Access |
9 |
8 |
8 |
8 |
