Benchmarks

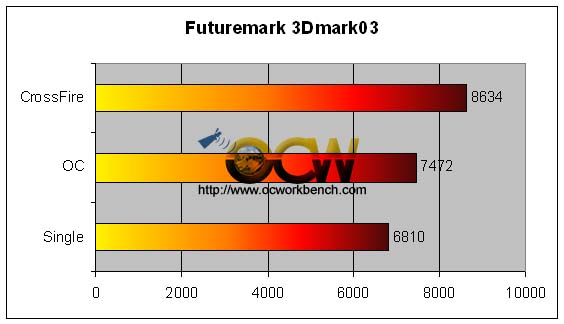

Futuremark 3DMark2003 (1024x768x32)

The card is ran at default clock which is at 594MHz/495MHz (core/mem). A score of 6810 is obtained when a single card is ran on the ECS KA1 MVP Extreme board (ATi RD480 chipset). The board runs with Corsair memory at CAS 2, 6-2-2, 1T cmd.

In terms of overclocking, we managed to push the Core clk to 655 and memory clk at 540. Using the new setting, we were able to obtain a score of 7472.

We got hold of another piece of X1300Pro Bravo and setup the ATI Control Centre to run in CrossFire mode. A score of 8634 is obtained running at default clk.

When the cards are in CrossFire mode, the score of 8634 is comparable to a single 6600GT, in fact, it is higher than 6600GT.
