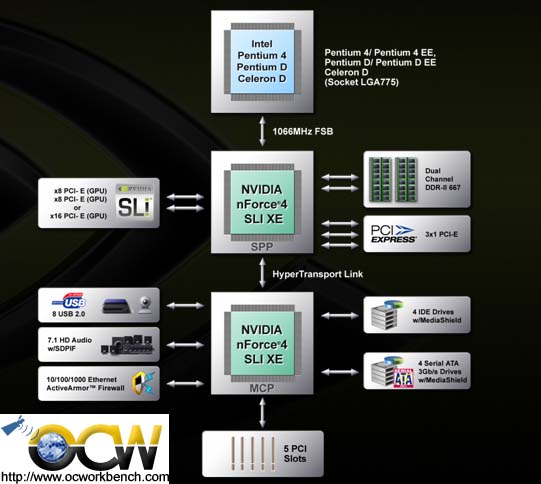

NVIDIA nForce®4 SLI XE and NVIDIA nForce4 Ultra for Intel processors

A state-of-the-art DualDDR2 memory controller allows high bandwidth and low latency data access to theCPU and GPU. Ensures data and information are relayed through the system as quickly as possible for incredible performance.

Suite of features that safeguards your most important digital media assets; always reliable, scalable, and accessible. Includes RAID and drive support.

Provides a simple point and click wizard-based interface for creating and managing multi-disk storage configurations. Allows multi-disk designs to be set up for automatic data protection, while alsoproviding faster disk access and adding storage capacity (RAID5), for maximum performance (RAID 0), for data protection (RAID 1), or for a combination of both performance and protection (RAID 0+1).

Also allows RAID volumes to be converted from one configuration to another with a single operation. Uniquely allows users to assign an extra disk to any RAID volume so that should a disk failure occur, MediaShield RAID will automatically remove the failed disk and replace it with the spare.

Doubles bus bandwidth and provides blazingly high disk performance. Take advantage of the latest SATA-2 3Gb/s hard disk drives with full support for native and tagged command queuing, and for hot plug. Native command queuing provides higher disk performance in a multi-threaded environment by performing out-of-order disk accesses.

Features include NVIDIA ActiveArmor Firewall, providing a high level of network security and system performance. This state of the art firewall provides a unique set of capabilities that can protect PCs from malicious spyware and hacker attacks.

ActiveArmor Firewall protects your PC from intruders by filtering unauthorized traffic. Integrated into NVIDIA nForce4 MCPs, it provides professional-grade traffic inspection capabilities, ‘instant-on’ protection, advanced management features—remote access, configuration, and monitoring—and is easy to use and setup via a user friendly wizard.

NVIDIA networking delivers the highest network throughput at the lowest CPU utilization. The manageable and stable NVIDIA networking solution results in better networking management and a lower total cost of ownership.

NVIDIA Native Gigabit Ethernet

The industry’s fastest Gigabit Ethernet performance eliminates network bottlenecks and improvesoverall system efficiency and performance.

Dramatically boosts graphics and gaming performance by unleashing the full potential of two NVIDIA SLIReady graphics cards
