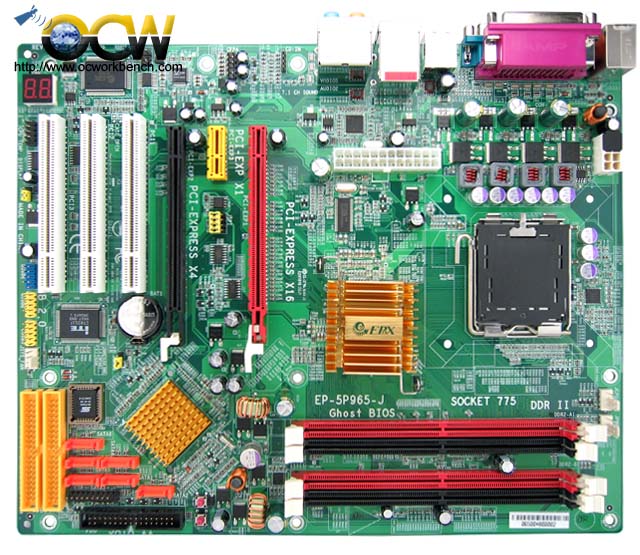

EPoX EP-5P965 GLI-J

This board suppports Socket LGA775 for Intel® Celeron D® 3xx, Intel® Pentium 4® 5xx/6xx up to 3.8GHz,  Intel Pentium D® 8xx/9xx with Dual core processor up to 3.6GHz, Intel Conroe core processor
533/800/1066 MHz front-side bus, Intel CPU manufactured in 65nm process.

It is based on the Intel P965 + ICH8 (ICH8R for EP-5P965+ GLI only). It come with 4 DDR2-800 slots supporting up to 4GB system memory.

It has HD audio, GbE, 10 USB ports, four S-ATA II ports with up to 300MB/s bandwidth from ICH8
Six S-ATA II ports with up to 300MB/s bandwidth from ICH8R with RAID 0,1 support (EP-5P965+ only)

EP-5P965 GLI-J / EP-5P965+ GLI Specifications


CPU Socket:
Socket LGA775 for Intel® Celeron D® 3xx, Intel® Pentium 4® 5xx/6xx up to 3.8GHz
Support Intel Pentium D® 8xx/9xx with Dual core processor up to 3.6GHz
Support Intel Conroe core processor
Support 533/800/1066 MHz front-side bus
Support Intel CPU manufactured in 65nm process.

Chipset:
Intel P965 + ICH8 (ICH8R for EP-5P965+ GLI only)

System Memory:
Four 240-pin DDR2 SDRAM DIMM sockets
Support 1.8v DDR2-400/533/667/800 DIMMs with dual channel architecture
Support single-sided or double-sided, non-ECC, DIMMs with 256Mb/512Mb/1Gb devices
Support up to 4 GB system memory

Expansion Slots:
Three PCI connectors compliant with PCI v2.3
One PCI-Express (x1) connectors compliant with PCI Express 1.0a
One PCI Express (x16) connector compliant with PCI Express 1.0a
One PCI Express (x4) connector for extra PCI-E VGA in GLI (Graphics Link Interface) mode

IDE:
Two IDE interface (up to 4 IDE devices) with ATA-133 from onboard ITE8211 IDE controller (EP-5P965+ GLI only)

USB:
Ten USB connectors compliant with USB2.0 from embedded USB controller (4 connectors at rear panel)

S-ATA:
Four S-ATA II ports with up to 300MB/s bandwidth from ICH8
Six S-ATA II ports with up to 300MB/s bandwidth from ICH8R with RAID 0,1 support (EP-5P965+ only)

LAN:
One Gb Ethernet from Realtek RTL8111B PCI-E (x1) controller

Audio:
Selectable 2 or 6-CH audio from Realtek ALC660 HDA compliant CODEC
Selectable 2, 6 or 8-CH audio from Realtek ALC883 HDA compliant CODEC (EP-5P965+ GLI only)
Support rear panel SPDIF Optical output. (EP-5P965+ only)
Support Aux-In, CD-In
Support Front panel audio for Mic-In and stereo Line-out only.
(Front panel Line-out electrically shared with rear panel Line-out).
Support Jack detection for fool-proof audio device installation

I/O:
Onboard EPOX EP1308 LPC bus I/O controller
Legacy peripheral interface for PS/2 keyboard & mouse, FDD, Parallel, Two Serial and IrDA (v1.0 compliant)
Support Hardware Monitoring for fan speed monitoring, CPU and System temperature.
Intelligent fan speed control for CPU-fan (PWM) for quiet operation

BIOS:
4Mb Flash EEPROM with Award Plug&Play BIOS
Support ACPI S3 (Suspend To RAM) mode in ACPI compliant O/S (optional)
Support EZ Boot for fast bootable device selection
Support Magic Health for system hardware status report during system boot-up

Special Features:
Support KBPO (Keyboard Power ON) function
Support Wake-On-LAN by PME
Support USB resume in S3 (optional)
Support Ghost BIOS for BIOS recovery
Support Asynchronous clocking mode between FSB and PCI/PCI-E

PowerBIOS for excellent overclocking features:
Programmable FSB and PCI Clock output frequency with 1MHz fine tuning
Support BIOS adjustable CPU multiplier, FSB clock, PCI-E x16 clock, DIMM frequency
Support BIOS adjustable voltage for CPU Core, chipset and DIMM

Powerful utilities for Windows:
Thunder Probe diagnostic utility for system hardware monitoring
Magic Flash for BIOS update without requiring DOS flash utility and bootable diskette
Magic Screen for personal bootup screen design

Supported O/S:
Windows 2000/Windows XP

Accessories
User’s manual
1 IDE cable & 1 FDD cables;
1 S-ATA data and power cables;
CD for drivers, utilities and bundle software
IO shield
