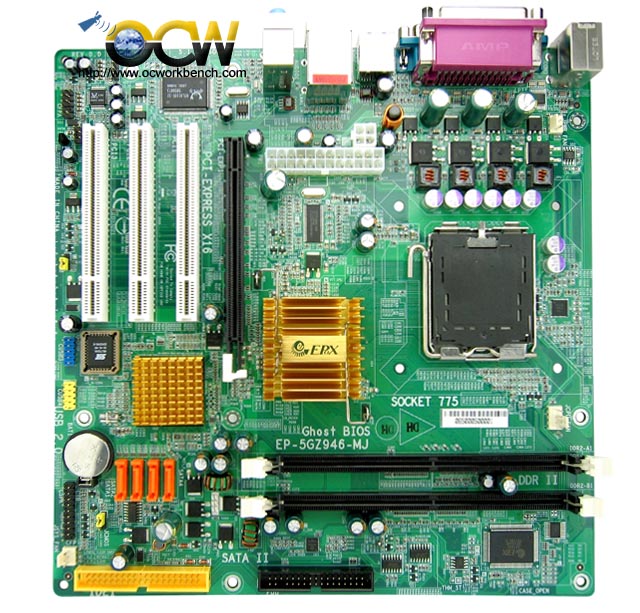

EPoX EP-5GZ946-M

EP-5GZ946-M is based on the i946 + ICH7 chipset. It supports Socket LGA775 for Intel® Celeron D® 3xx, Intel® Pentium 4® 5xx/6xx up to 3.4GHz CPU. upport Intel Pentium D® 8xx/9xx with Dual core processor up to 3.4GHz, support Intel Conroe core processor, support 533/800 MHz front-side bus and support Intel CPU manufactured in 65nm process.

It comes with 2 DDR2 slots supporting up to 2GB of DDR2-667. There are 3 PCI, 1 PCIe x16 slot. It supports 4 SATAII, 8 USB,One Gb Ethernet from Realtek RTL8110-SC PCI controller (5GZ946-MJ only), One 10/100 Ethernet from Realtek RTL8100C PCI controller (5GZ946-M only) and 6 ch audio.


EP-5GZ946-M / EP-5GZ946-MJ Specifications


CPU Socket:
Socket LGA775 for Intel® Celeron D® 3xx, Intel® Pentium 4® 5xx/6xx up to 3.4GHz
Support Intel Pentium D® 8xx/9xx with Dual core processor up to 3.4GHz
Support Intel Conroe core processor
Support 533/800 MHz front-side bus
Support Intel CPU manufactured in 65nm process.

Chipset:
Intel i946GZ + ICH7 (Broadwater-GZ) with Intel Gen4 graphics

System Memory:
Two 240-pin DDR2 SDRAM DIMM sockets
Support 1.8v DDR2-400/533/667 DIMMs with dual channel architecture
Support single-sided or double-sided, non-ECC, DIMMs with 256Mb/512Mb/1Gb devices
Support up to 2GB system memory

Expansion Slots:
Three PCI connectors compliant with PCI v2.3
One PCI Express x16 connector for PCI Express VGA
One PCI Express (x4) slot for PCI-E VGA expansion

IDE:
One IDE interface (up to 2 IDE devices) with UDMA-33, ATA-66/100 support from embedded IDE controller

USB:
Eight USB connectors compliant with USB2.0 from embedded USB controller (4 connectors at rear panel)

S-ATA:
Four S-ATA II ports with up to 300MB/s bandwidth from ICH7

LAN:
One Gb Ethernet from Realtek RTL8110-SC PCI controller (5GZ946-MJ only)
One 10/100 Ethernet from Realtek RTL8100C PCI controller (5GZ946-M only)

Audio:
Selectable 2 or 6-CH audio from Realtek ALC861 HDA compliant CODEC
Support Aux-In, CD-In
Support Front panel audio for Mic-In and stereo Line-out only.
(Front panel Line-out electrically shared with rear panel Line-out).
Support Jack detection for fool-proof audio device installation

I/O:
Onboard EPOX EP1308 LPC bus I/O controller
Legacy peripheral interface for PS/2 keyboard & mouse, FDD, Parallel, Two Serial and IrDA (v1.0 compliant), …
Support Hardware Monitoring for fan speed monitoring, CPU and System temperature.
Intelligent fan speed control for CPU-fan (PWM) for quiet operation

BIOS:
4Mb Flash EEPROM with Award Plug&Play BIOS
Support ACPI S3 (Suspend To RAM) mode in ACPI compliant O/S
Support EZ Boot for fast bootable device selection
Support Magic Health for system hardware status report during system boot-up

Special Features:
Support KBPO (Keyboard Power ON) function
Support Wake-On-LAN by PME
Support USB resume in S3
Support Asynchronous clocking mode between FSB and PCI/PCI-E

PowerBIOS for excellent overclocking features:
Programmable FSB and PCI Clock output frequency with 1MHz fine tuning
Support BIOS adjustable CPU multiplier, FSB clock, PCI-E x16 clock, DIMM frequency
Support BIOS adjustable voltage for CPU Core and DIMM

Powerful utilities for Windows:
Thunder Probe diagnostic utility for system hardware monitoring
Magic Flash for BIOS update without requiring DOS flash utility and bootable diskette
Magic Screen for personal bootup screen design

Supported O/S:
Windows 2000/Windows XP

Accessories
User’s manual
1 IDE cable & 1 FDD cables;
1 S-ATA data and power cables;
CD for drivers, utilities and bundle software
IO shield
