5P945-GLI is a board based on the P945P + ICH7 chipset that supports the Conroe processor. This board supports a PCIe x16 and PCIe x4 for GLI mode.

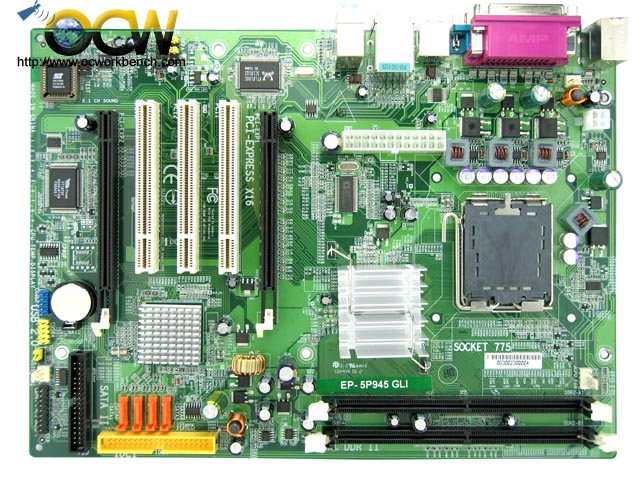

EPoX 5P945-GLI

5P945-GLI /J Specifications


CPU Socket:
Socket LGA775 for Intel® Celeron D® 3xx series, Intel® Pentium 4® 5xx/6xx series
Support Intel Pentium D® with Dual core processor
Support Intel Conroe core processor
Support 533/800/1066 MHz front-side bus
Socket Intel CPU manufactured with 65nm process.

Chipset:
Intel i945P + ICH7

System Memory:
Two 240-pin DDR2 SDRAM DIMM sockets
Support 1.8v DDR2-400/533/667 DIMMs with dual channel architecture
Support single-sided or double-sided, non-ECC, DIMMs with 256Mb/512Mb/1Gb devices
Support up to 2GB system memory

Expansion Slots:
Three PCI connectors compliant with PCI v2.3
One PCI Express x16 connector (x4 lanes) for PCI Express VGA in GLI (Graphics Link Interface) mode.
One PCI Express (x16) connector compliant with PCI Express 1.0a

IDE:
One IDE interface (up to 2 IDE devices) with UDMA-33, ATA-66/100 support from embedded IDE controller

USB:
Eight USB connectors compliant with USB2.0 from embedded USB controller (4 connectors at rear panel)

S-ATA:
Four S-ATA –2 ports with up to 300MB/s bandwidth from ICH7

LAN:
One Gb Ethernet from Realtek RTL8110SC PCI controller (5P945-GLI-J only)
One 10/100 Ethernet from Realtek RTL8100C PCI controller (5P945 GLI only)

Audio:
Selectable 2 or 6-CH audio from ALC65x AC’97 compliant CODEC
Support Aux-In, CD-In, S/PDIF-in and S/PDIF-out
Support Jack detection for fool-proof audio device installation

I/O:
Onboard Finetek F71872F LPC bus I/O controller
Legacy peripheral interface for PS/2 keyboard & mouse, FDD, Parallel, Two Serial, Game and IrDA (v1.0 compliant), …
Support Hardware Monitoring for fan speed monitoring, CPU and System temperature.
Intelligent fan speed control for CPU-fan (PWM) for quiet operation

BIOS:
4Mb Flash EEPROM with Award Plug&Play BIOS
Support EZ Boot for fast bootable device selection
Support Magic Health for system hardware status report during system boot-up

Special Features:
Support KBPO (Keyboard Power ON) function
Support Wake-On-LAN by PME
Onboard Post-Port LED display (optional)
Support Asynchronous clocking mode between FSB and PCI/PCI-E

PowerBIOS for excellent overclocking features:
Programmable FSB and PCI Clock output frequency with 1MHz fine tuning
Support BIOS adjustable CPU multiplier, FSB clock, PCI-E x16 clock, DIMM frequency
Support BIOS adjustable CPU Core voltage, Chipset voltage, DIMM voltage settings

Powerful utilities for Windows:
Thunder Probe diagnostic utility for system hardware monitoring
Magic Flash for BIOS update without requiring DOS flash utility and bootable diskette
Magic Screen for personal bootup screen design

Form Factor:
305mm x 220mm x 40mm, ATX Size

Supported O/S:
Windows 2000/Windows XP


Accessories
User’s manual
1 IDE cable & 1 FDD cables;
1 S-ATA data and power cables;
CD for drivers, utilities and bundle software
IO shield Date: 2006/1/16
