Conroe boards using ATi RC410 + SB600 chipset will definitely bring down the cost of owning a small form factor board that runs the upcoming processor that comes with built in graphics.

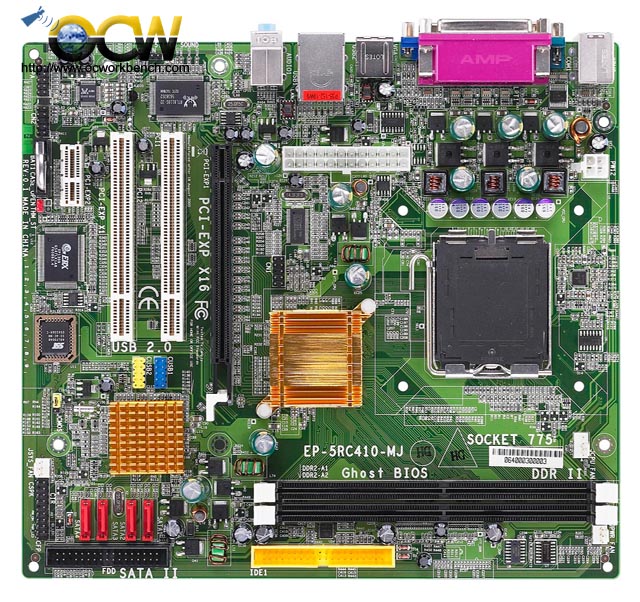

EPoX EP-5RC410-MJ

CPU Socket:
Socket LGA775 for Intel® Celeron D® 3xx series, Intel® Pentium 4® 5xx/6xx series up to 3.4GHz
Support 533/800 MHz front-side bus
Support Intel Core E4xxx Conroe processor
Support Intel Pentium D® with Dual core processor
Support Intel® EM64Tφ 64-bit Computing platform

Chipset:
ATI RC410 + SB600 with Radeon 9600 graphics

System Memory:
Two 240-pin DDR2 SDRAM DIMM sockets
Support 1.8v DDR2-400/533 DIMMs
Support single-sided or double-sided, non-ECC, DIMMs with 256Mb/512Mb/1Gb devices
Support up to 2GB system memory

Expansion Slots:
Two PCI connectors compliant with PCI v2.3
One PCI Express (x1) connectors compliant with PCI Express 1.0a
One PCI Express (x16) connector compliant with PCI Express 1.0a

IDE:
One IDE interfaces (up to 4 IDE devices) with UDMA-33, ATA-66/100/133 support from chipset IDE controller

USB:
Eight USB connectors compliant with USB2.0 from embedded USB controller (4 connectors at rear panel)

S-ATA:
Four S-ATA ports with up to 300MBps bandwidth with RAID 0,1 support

LAN:
One Gb Ethernet from Realtek RTL8110SC PCI controller (5RC410-MJ3 only)
One 10/100 Ethernet from Realtek RTL8100C PCI controller (5RC410-M3 only)

Audio:
Selectable 2 or 6-CH audio from ALC660 or ALC860 HDA CODEC
Support CD-In, S/PDIF-in and S/PDIF-out
Support Front panel audio for Mic-In and stereo Line-out only.
(Front panel Line-out electrically shared with rear panel Line-out).
Support Auto Jack Sensing for fool-proof audio device installation

I/O:
Onboard EPOX EP1308 LPC bus I/O controller
Legacy peripheral interface for PS/2 keyboard & mouse, FDD, Parallel, 1 Serial Port and IrDA (v1.0 compliant)
Support Hardware Monitoring function
Intelligent fan speed control for CPU-fan (PWM) for quiet operation

BIOS:
4Mb Flash EEPROM with Award Plug & Play BIOS
Support ACPI S3 (Suspend To RAM) mode in ACPI compliant O/S
Support EZ Boot for fast bootable device selection
Support Magic Health for system hardware status report during system boot-up

Special Features:
Support KBPO (Keyboard Power ON) function
Support Wake-On-LAN by PME
Support USB resume in S3
Support Ghost BIOS for BIOS recovery
Support Asynchronous clocking mode between FSB and AGP/PCI

PowerBIOS for excellent overclocking features:
Programmable FSB and AGP/PCI Clock output frequency with 1MHz fine tuning
Support BIOS adjustable CPU multiplier, FSB clock, PCI-E clock settings
Support BIOS adjustable CPU Core voltage, DIMM voltage settings

Powerful utilities for Windows:
Thunder Probe diagnostic utility for system hardware monitoring
Magic Flash for BIOS update without requiring DOS flash utility and bootable diskette
Magic Screen for personal bootup screen design

Digital Home Panel: (5RC410-MJ3 only)
Support Component Video (YPbPr), S-Video and Composite video output for HDTV display.
Support AV Right/Left audio output on RCA connector.

Form Factor:
245mm x 230mm x 40mm, Micro-ATX Size

Supported O/S:
Windows 2000/Windows XP

Accessories
User’s manual
1 IDE cable & 1 FDD cables;
S-ATA data and power cables;
CD for drivers, utilities and bundle software
IO shield
