Benchmarks

Sandra 07

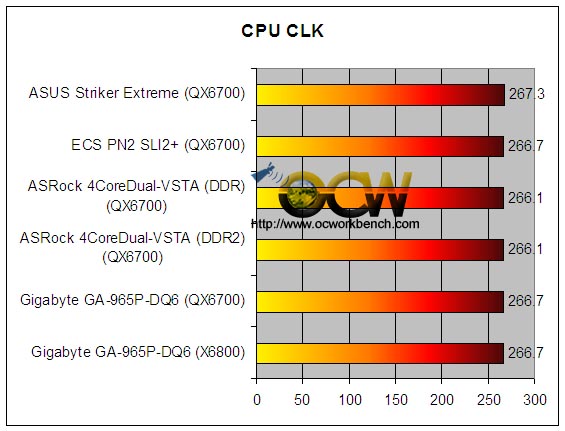

The boards are first measured to ensure accuracy of CLK. In CPUZ test, we see that the CLK of the Gigabyte GA-965P-DQ6 is at 266.7 while the ASRock 4CoreDual-VSTA is at 266.1MHz.

In the tests to follow, the Gigabyte board is ran with 2GB of Corsair DDR2 running at CAS 5, 5-5-18 DDR2-800 mode while the ASRock 4CoreDual-VSTA will run in DDR mode with 1GB of Corsair memory at CAS 2, 2-2-5, 1T cmd and in DDR2 mode, it is run with the same pair of DDR2 modules (2GB) running at CAS 3, 3-3-8, 1T cmd DDR2-533.

The ECS PN2 SLI2+ runs at 266.7 which is just exactly at the same clk speed as the Gigabyte GA-965P-DQ6.

ASUS on the other hand has its 0505 bios tuned to 267.3MHz, that is a big higher than the rest of the boards in comparison. Will it give it a better edge during the benchmarks.

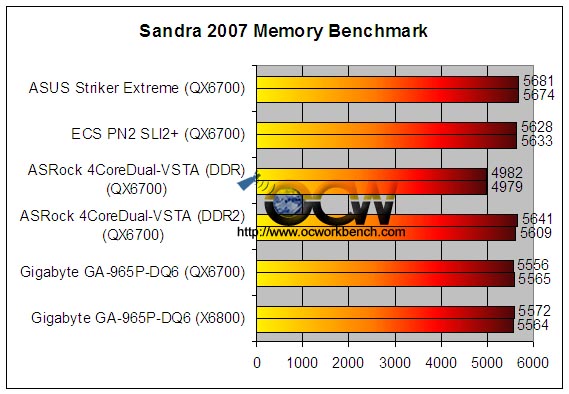

From the chart below, we can see that ASUS Striker Extreme and the ECS PN2 SLI2+, both based on the NForce 680i chipset does better in this category. Will it translate to better scores for memory intensive applications. WE shall see.
