BIOS I
 |
 |
|

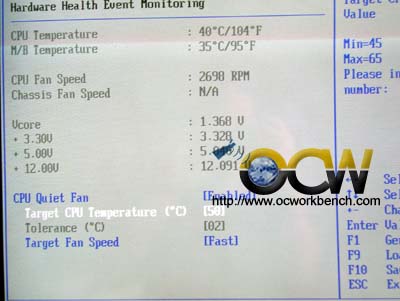

CPU Quiet Fan function allows the fan speed to be tuned down based on
temperature settings |

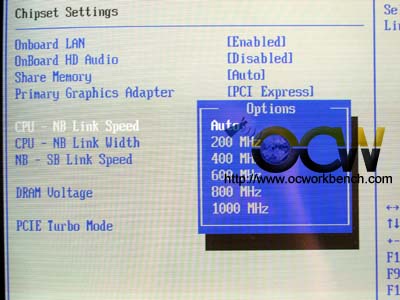

CPU_NB link speed is probably one of the most important settings for
overclockers. Lower this value to 600 (3x) will give you an edge since CLK x
3 < 1GHz, that allows your CLK to go over the 300MHz mark. |
 |
 |
|

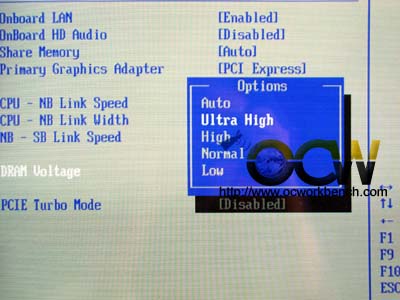

DRAM Voltage can be set to Auto, Normal High and Ultra High |

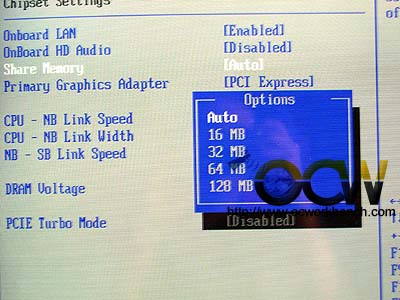

As this board uses the 6100 chipset, it is equipepd with embded VGA. You can
use the on board share memory for video. |
|
|
|
