BIOS I
Over at this screen, you can set
the Overclock mode to PCI ASYNC so that PCIe can be fixed at 100 or you may
want to o/c it up selectable to 200MHz. CPU Frequency can be adjusted from

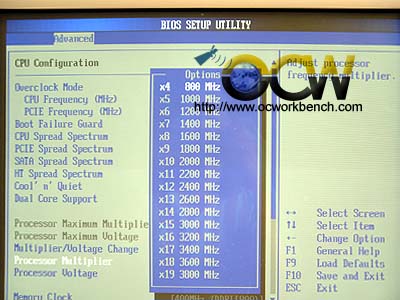

200 ~ 400MHz. Cpu mutliplier options of up to 25x can be chosen.

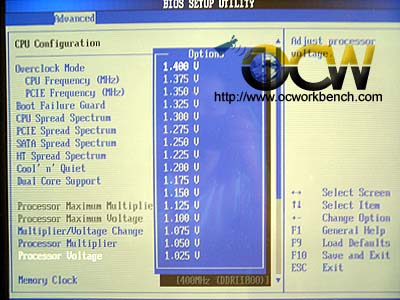

Processor voltage is limited to up to 1.40v on 4000+. Different processors
might have different limits.
Memory CLK can be set to run in ASYnc mode to the CPU CLK. It is useful
during overclocking to ensure the RAM does not go beyond its limits.

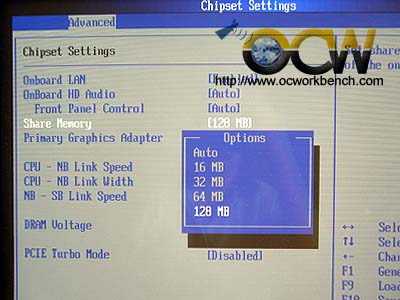

Share memory can be set to 128M. DRAM voltage can be set to HIGH for more
stability when aggressive timings are used.
