ULi M1695 FX-57 oc to 400 x 7 aircooled 2/2
Bluetooth 27 Jun 2005

Introduction

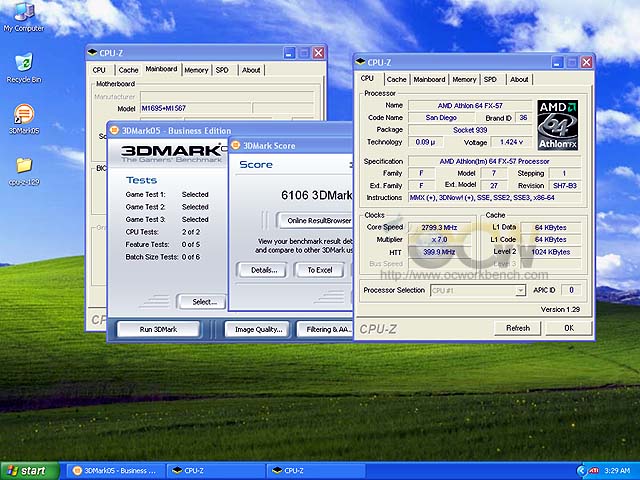

Next the FX-57 based on the San Diego core is tested. The FSB is set to 400MHz. This is done because we wanted to see how far we can push the HTT. The graphics card used is a 6600GT PCI-E. HTT is set to 600MHz (3x) and ram is running ASync DDR200, CAS 2.5,8-4-4 just to ensure that ram is not holding back the overclocking test. Voltages are default. 3Dmark2005 was run and scored 6106 on a 6600GT.

CPU Frq = 400MHz
PCIE Frq. =100MHz
HTT Frq. = 400*3=1200MHz
DDR Frq. = 100*4=> DDR400
CPU Core Frq.= 400MHz * 7 = 2.8G

Looks like we have an alternative solution to the NF4 very soon when retail boards based on this chipset is out in the market. Lets hope that the manufacturers will make such overclockable boards with more voltage options.

Latest : ULi M1695 is capable of Dual PCI-E 8x linked up to support dual GPUs. Check out the link for more information.
