SiS 756 Reference Board Intro 1/3
Bluetooth 4 Mar 2005

SiS 756

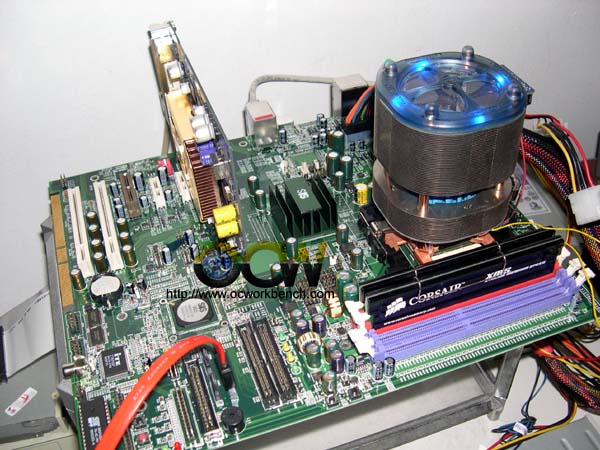

It has been a long wait since its announcement last year. Finally, we got hold of the SiS 756 Reference board. For our die hard fans out there, you would already know that SiS 756 is SiS's next generation K8 chipset support the PCI Express Interface for high end graphics card. Similar to its predecessor, the SiS 755FX, it uses the MULTIOL of 1GB/s to interconnect the North and South Bridges.

The SiS756, featuring SiS’ leading HyperStreaming™ technology, integrates with AMD’s exclusive 1GHz HyperTransport™ technology to deliver up to 2000MT/s. Moreover, SiS MuTIOL® 1G technology, embedded in the SiS756 chipset, ensures the smoothest data transfer between North and South Bridges and the fastest bus architecture available on a desktop PC chipset.

Matched with South Bridge Chipset SiS965, the SiS756/965 offers a complete solution, simplifying sales and support while offering users the most cutting edge features. The SiS965 features a robust feature set for today’s demanding and varied PC applications, including support for two PCI-E X1, gigabit LAN, 8 USB 2.0 ports, AC 97 7.1 channel sound, 4 SATA and 4 PATA devices. The SiS965 also supports SATA Multiple RAID disk array modes in RAID0, 1, 0+1, and JBOD.




Chipset Model Name / Specs SiS656/SiS964
Support CPU Type Support AMD Athlon™64 FX and Opteron™ CPU
Graphics Card Interface PCI Express X16
Gigabyte LAN Network Controller Support 10/100/1000Mbps LAN Function
Integrated SATA Controller Support 4 SATA Ports
Integrated USB2.0 Controller Support 8 USB 2.0 Ports
Support RAID Function Support RAID 0, 1, 0+1 and JBOD
MuTIOL® 1G Provide High Efficient Connection with 1GB/s Bandwidth between Northbridge and Southbridge Chipsets
SiS Proprietary Technology HyperStreaming™ Technology

Discuss in Forum
