SiS 756 Reference Board Intro 2/3
Bluetooth 4 Mar 2005

Gallery

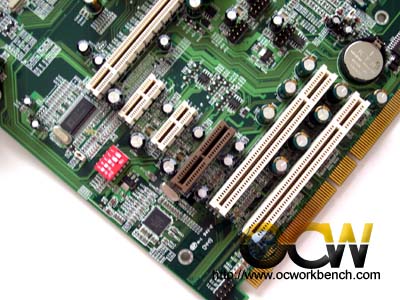

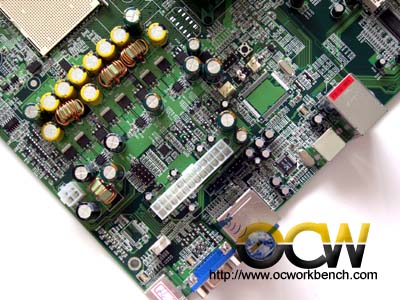

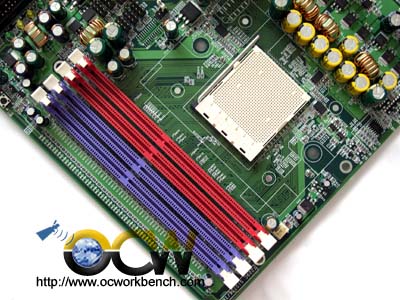

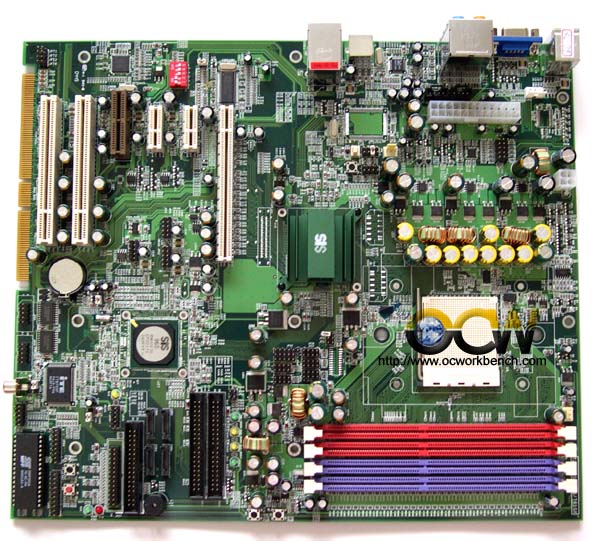

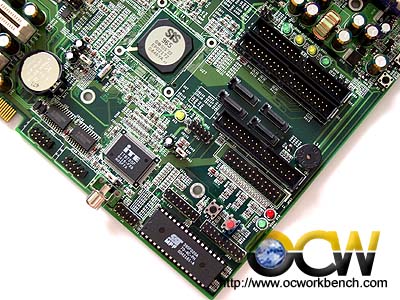

The board comes with 1 AMR, 2 PCI, 1 PCI-Ex16, 2 PCI-Ex1 which allows for future expansion cards. The power on board is based on a 3 phase design. At the bottom of the board, we see 4 DIMM slots supporting up to 4GB of DC-DDR400. There are 2 IDE ports supporting up to 4 IDE devices. 4 SATA ports are also supported by the chipset.

The back panel consists of PS/2 Keyboard and Mouse. COM1, Parallel port, 4 USB ports, 1 x GbE port and audio ports.
