Jetway
939GT4-STD-G NF4 Mainboard Intro 4/5 Bluetooth 20 June 2005
BIOS

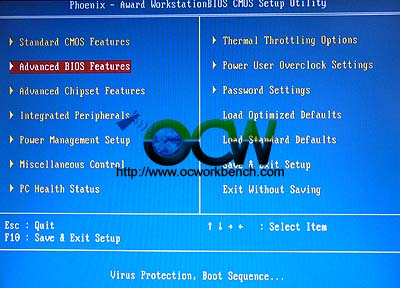

The BIOS Main Screen

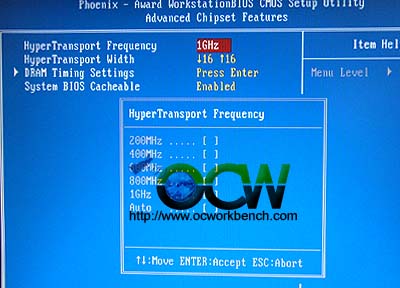

HTT Can be set to 200,400,600,800 or 1GHz

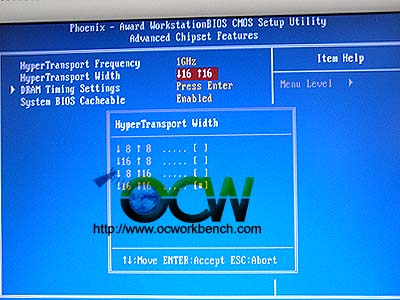

HTT Width can be set to 8/16 up down

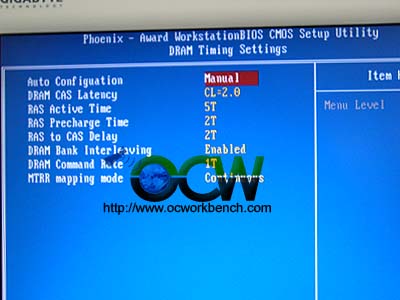

DRAM timing settings has lots of options for
you to tweak. The more important ones are 1T/2T Memory Timing. CAS Latency (tcl),
RAS to CAS (tRCD), Min RAS#active time (tRAS), Row Precharge time (tRP) and
Row precharge time (tRP). My settings is based on Corsair TwinX CAS 2
module. which runs at CAS 2, 5-2-2 1T cmd rate

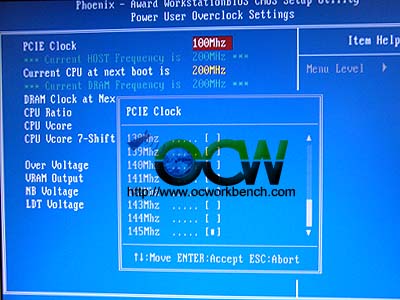

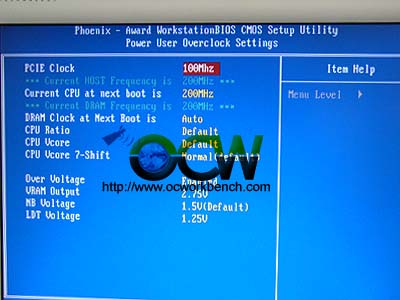

Power User Overclock setting has options
like PCI-E, CPU FSB, DRAM clk, vcore, DDR voltage, NB, LDT voltage
adjustments
