Foxconn Winfast 6150K8MA-8EKRS Socket 939 (GF6150) Intro 2/5
Bluetooth 14 Nov 2005

Gallery

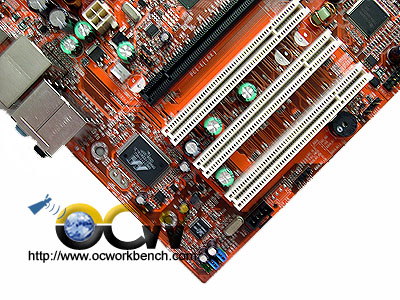

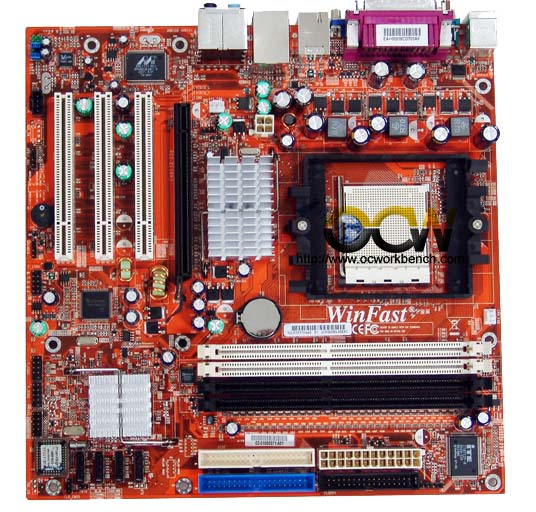

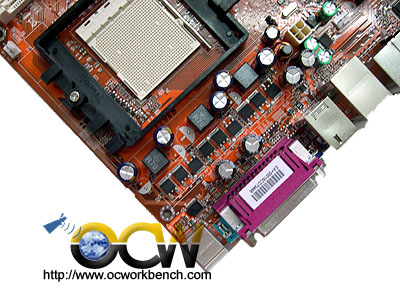

The board comes with 3 PCI, 1 PCIe x16 slots. The power on board is based on a 3 phase design. If you notice, Behind the slots are I/O controller chip, audio codec and at the centre you will see the GbE tPHY chip. On the left is the ALC 850 7.1 audio codec. They could have used a 880 instead.

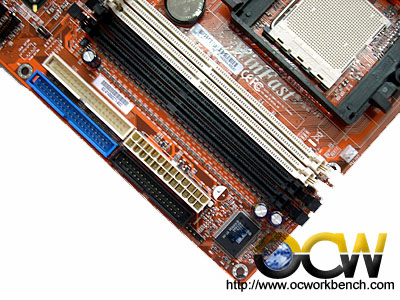

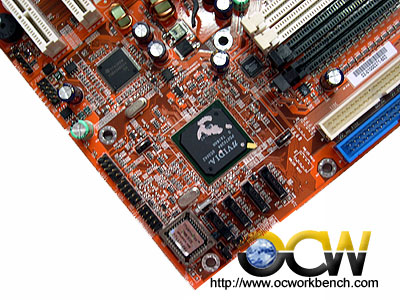

Further down to the left, you will see the floppy connector, USB external connectors. south bridge, SATAII ports, front panel connectors. Towards the centre, we see the C51PV north bridge, CPU Socket939, 4 DIMM slots and 2 IDE ports.

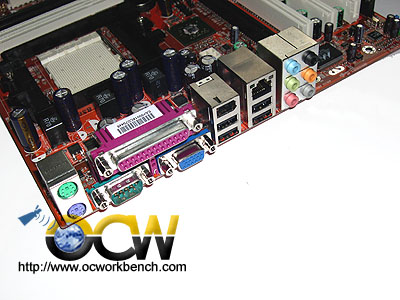

The back panel consists of PS/2 Keyboard and Mouse, COM port, VGA port, 4 USB ports, 1 x GbE port and 8ch audio ports.
