Foxconn Winfast 6150K8MA-8EKRS Socket 939 (GF6150) Intro 3/5
Bluetooth 14 Nov 2005

Chipsets

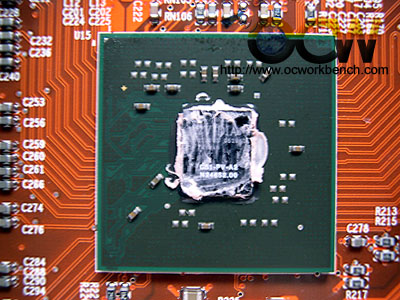

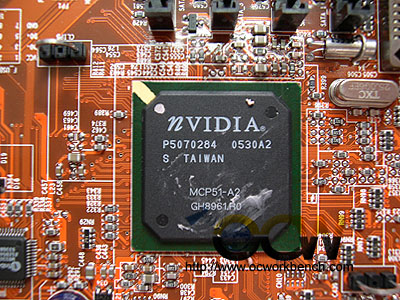

Nvidia C51-PV-A2 stepping. This is the north bridge with an integrated graphics. A shared memory of up to 128MB can be used.	The NVIDIA MCP430 MCP51-A2 stepping. This is the south bridge which supports the IDE and SATA2 ports and other functions.

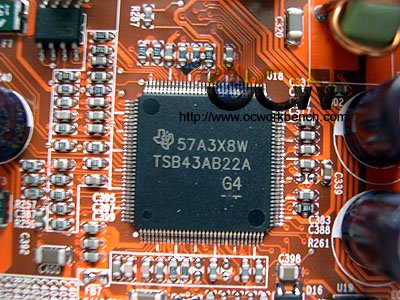

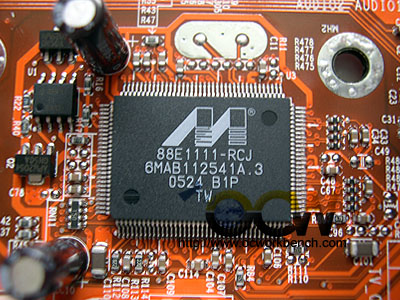

Texas Instrument 1394a controller	Marvell GbE PHY

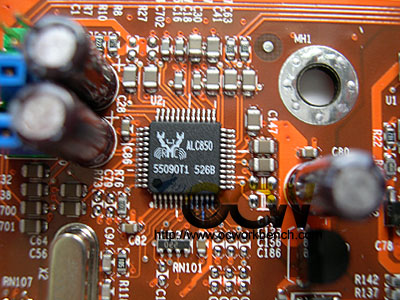

The board uses ALC850 7.1ch Audio codec for HD audio
