Foxconn Winfast 6150K8MA-8EKRS Socket 939 (GF6150)
Intro 1/5
Bluetooth 14 Nov 2005
Winfast
6150K8MA-8EKRS
Winfast
6150K8MA-8EKRS is the mATX solution targetting multimedia PCs. Small in form
factor but big in functions. 6150K8MA-8EKRS is based on the new GF6150
integrated chipset. The Northbridge:
nVidia GeForce 6150 and Southbridge: nVidia nForce 430 MCP.
(There are various combinations of NB_SB pairs, a comparison of them and
supported features can be found
here). This Socket 939
board supports up to 4GB DDR400 memory in dual channel mode and the Socket 939 processors including the
AMD Athlon 64/FX/X2. It is capable of HT of 1GHz and
AMD Cool 'n' Quiet Technology. It supports an external
PCie x16 graphics card and comes built in with a PureVide-CE quality video
processor to acclerate WMVHD video playback.
There are also 2 ATA/133 + 4 ports of Serial ATA
II 3.0Gb/s, RAID 0, 1, 0+1, 5s. Audio wise
it has 7.1 Realtek audio codec. There is a GbE
controller using a Marvell PHY.
The board also uses Texas Instrument 1394a controller. It also can support up to
8 USB 2.0 ports, 4 in rear I/O and 4 more via headers on board using brackets.
There is a also TV-out via cable/bracket.
Although this is
a mATX board, WinFast has incorporated adjustable
bus speeds, Adjustable memory timing
and Adjustable voltages
for Vcore and Vdimm. Considering it a matx board, it can o/c pretty well. Check
out the rest of the review to find out more.
Specifications
| Processor |
AMD Athlon™ 64/Athlon 64 FX/Athlon 64 X2
Dual-Core, Socket 939 (939-pin), 1600/2000MT/s |
 |
| Chipset |
NVIDIA GeForce 6150 GPU + nForce 430 MCP |
|
|
| Memory |
Dual channel, unbuffered, 2.5V
DDR266/333/400, (4) 184-pin DIMM sockets, max 4GB |
|
|
| Graphics |
Integrated NVIDIA high-performance graphics
controller (fast core) plus PCIe x16 slot
PureVideo CE-quality video processor
Supports up to 128MB shared system memory - virtualized up to 256MB |
|
|
| Expansion Slots |
1 x PCI Express x16, 3 x PCI |
|
|
| IDE/ATA Support |
2 x ATA/133 + 4 x SATA/300 (w/ RAID)
Supports RAID 0, 1, 0+1, and 5 |
|
|
| Audio |
Integrated, 7.1 channel AC97 (Realtek) |
|
|
| LAN |
Integrated Gigabit Ethernet (10/100/1000)
MAC + PHY (Marvell) |
|
|
| IEEE-1394 |
2; 1 x 6-pin in rear I/O area + 1 front via
internal header; 1394a (TI) |
|
|
| USB |
Up to 8; 4 in rear I/O area + 2 internal
2-port headers; ver. 2.0 |
|
|
| Rear I/O Ports |
1 x PS/2 keyboard
1 x PS/2 mouse
1 x RJ45 (LAN)
4 x USB 2.0
1 x line-in/line-out/mic (audio)
1 x parallel (SPP/ECP/EPP)
1 x COM (16550-compatible UART)
1 x VGA (integrated video)
Additional line-outs for 7.1 channel audio
1 x IEEE-1394
TV-out via cable/bracket |
|
|
| Internal Connectors/Headers |
1 x floppy disk drive
Front audio header
2 x USB 2-port headers, ver. 2.0 |
|
|
| BIOS |
4Mb flash EEPROM w/ LAN boot, PnP, ACPI,
WfM, DMI 2.0, |
|
|
| Special Features |
Wake-on-LAN (WOL), suspend-to-RAM (STR, S3),
suspend-to-disk (STD, S4), SuperUtilities - SuperBoot, SuperBIOS-Protect,
SuperRecovery, SuperSpeed, SuperStep, SuperLogo, and SuperUpdate; NVIDIA
ActiveArmor, Firewall, MediaShield, and nTune |
|
|
| Overclocking Features |
Adjustable bus speeds
Adjustable memory timing
Adjustable voltages (may be Vcore only) |
|
|

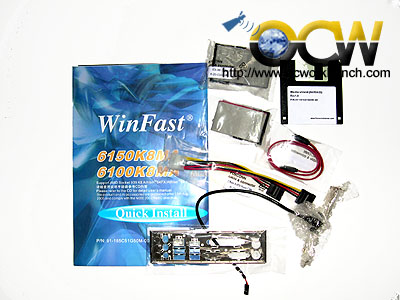

| Accessories |
Support CD, user's manual (on CD), rear I/O
shield, 1 x floppy drive cable, 1 x HDD/ODD drive cable (supports UDMA/ATA
33/66/100/133 drives)
Quick installation poster
RAID driver on floppy disk(s)
1 x SATA data cable, 1 x SATA power cable (supports 2 drives)
TV-out cable/bracket
Processor heat sink retention mechanism |
|
|
| Form Factor |
microATX, 9.6'' x 9.6'' or smaller |
