Gigabyte K8S760M (SiS760) Gallery/Preview (3)
Bluetooth 18 Apr 2004

The Chips

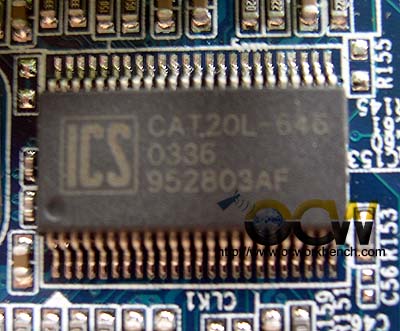

ICS 952803AF - clock gen of the mainboard.	The difference of 760 design is that it has its on onboard memory chips. Thus it does not need to share the on board memory for its integrated vga. On the mainboard we see 2 hynix 5ns ram on each side of the mainboard.

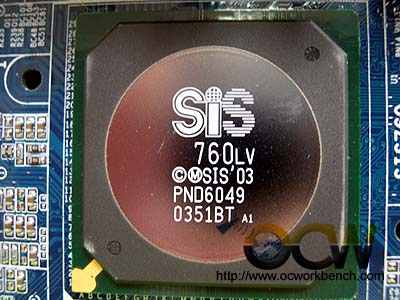

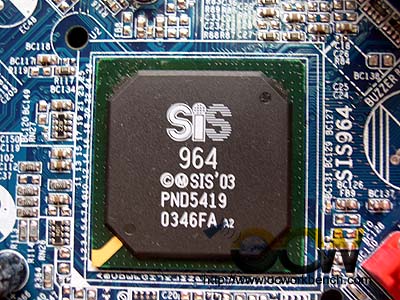

964 South Bridge supporting 2 SATA ports.	The SIS 760 north bridge

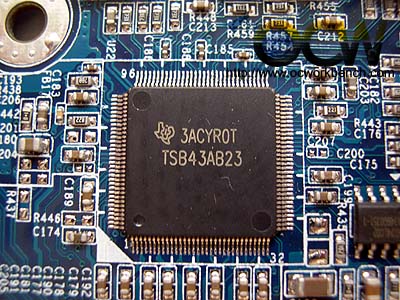

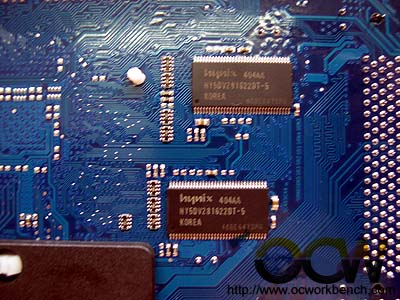

Firewire from TSB43AB23	2 ram chips on the back of the mainboard.
