EPoX 8RDA6+Pro nF2 Ultra400+Gigabit MCP Mainboard (1)
Bluetooth 23 Jul 2004

EPoX 8RDA6+Pro nF2 Ultra400+Gigabit MCP Mainboard (NVIDIA nForce2 Ultra 400Gb)

While all the fuss lately has been over AMD and their Athlon64 and Intel's new Prescott on Socket 775, many users still remain loyal to Socket A. With all the onboard features that are appearing these days on newer generation motherboards, Socket A owners have been feeling a bit left behind. Well, this is all about to change, with Epox releasing the 8RDA6+ Pro Motherboard.

Based on the nVIDIA NForce2 Ultra 400 / Gigabit MCP Chipset, it is crammed with features, the most notable the Gigabit Ethernet and Firewall. This is the same Ethernet/Firewall package found on the Socket 754/939 Motherboards, providing amazing bandwidth due to its dedicated link instead of going through a PCI Device. The new South Bridge also incorporates a Firewall function built into the Chipset. Alongside these features you receive 6 SATA Ports, Raid, Firewire, 8 USB Ports, the list just goes on. And with the announcement and release of the new Socket A Cpu, Sempron, coming in the near future, Socket A looks to have a new Champion Motherboard.

Package

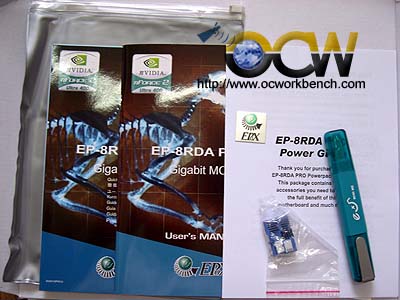

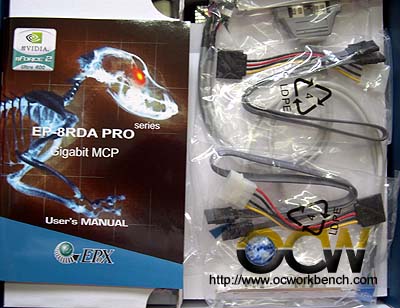

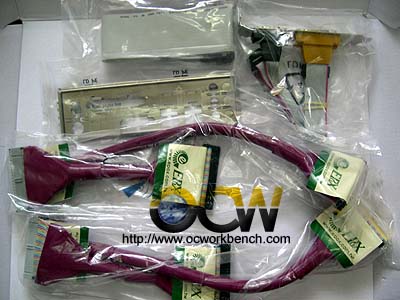

The package comes standard with the rounded cables, manuals, CDROM, USB bracket, SATA Cables. The power pack comes with mini heatsinks, a power guide, screwdriver. You no longer need to find your screw driver to install the board. If you want to overclock further, install the heatsinks on the MOSFETS.

Specifications

Specifications for EP-8RDA6+ Pro:
• Socket A Supporting 200/266/333/400MHz FSB AMD Processors
• NVidia NForce2 Ultra 400 / Gigabit MCP
• 3 DDR SDRAM banks for Maximum 3 GB memory DDR333/400 Dual Channel DDR400 memory support for increased performance (backward compatible)
• 1 Floppy drive controller - serial port - parallel port
• AGP 8x for 1.5v graphics cards, 6 PCI slots
• 2 standard IDE ports for ATA-133, backwards compatible with ATA-100/66
• Onboard Serial ATA support for 2 drives from Gigabit MCP
• More-SATA, 4 additional S-ATA ports from Silicon Image with RAID 0,1,10
• 4 USB 2.0 ports, 4 extra by optional USB back-panel cables
• Onboard Gigabit LAN by Cicada CIS8201 PHY
• Onboard P80P diagnostics LED
• 2 1394A ports with 400Mbps bandwidth from VIA VT6307 1394 controller
• Onboard sound, 6 or 8 channel selectable by Realtek ALC850 with onboard Optical and coaxial output, Auto-Jack sensing
• Standard ATX format 305mm x 245mm x 40mm, ATX Size
• Multiphase power solution for increased stability, including 12v supply adaptation for CPU

Discuss in EPoX sector
