EPoX 8RDA6+Pro nF2 Ultra400+Gigabit MCP Mainboard (2)
Bluetooth 23 Jul 2004

Gallery

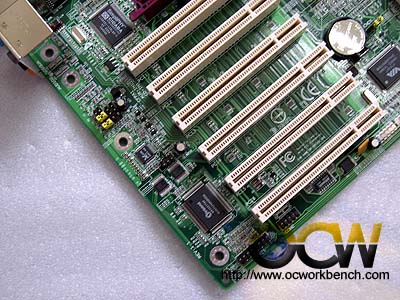

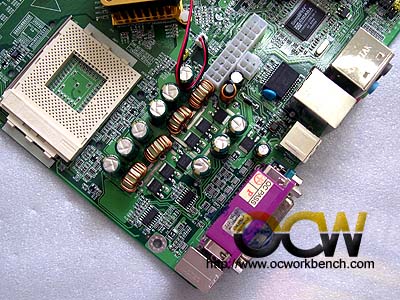

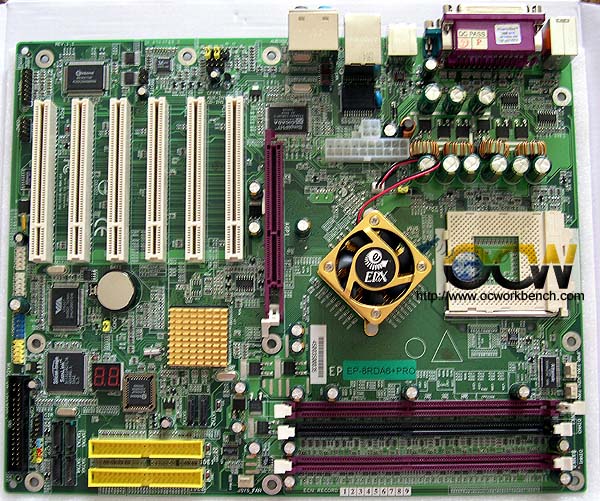

First of all, lets take a look at the board layout. 6 PCI slots on the board with 1 x AGP slot. On the right hand corner, we see the +12v and ATX connector. The I/O controller is right behind the 6 PCI slots and wee see the Cicada CIS8201 LAN PHY chip. Socket A is right below the coils.

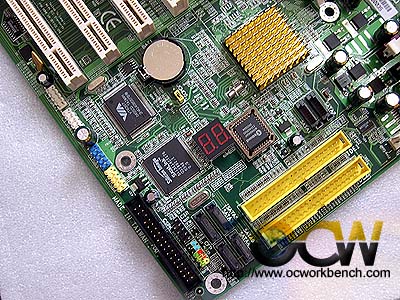

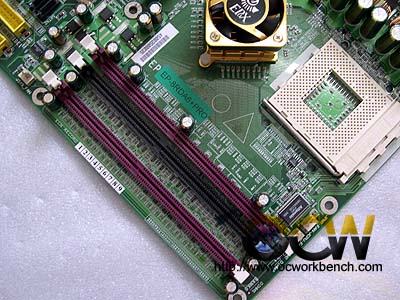

On the bottom left hand corner we see the VIA 1394 controller chipset and SiliconImage 3114 SATA/IDE RAID controller. Next to it is the BIOS and Diagnostic LED. Below the chipsets are 4 SATA ports in RAID 0, 1, 10, 5 supported by SIL 3114. 2 channels of IDE and 2 SATA are supported natively by the MCP. On the right we see 3 DIMM slots supporting dual channel DDR400.
