Coolermaster Hyper 6
Heatpipe KHC-V81 (2) Bluetooth 23 Apr 2004

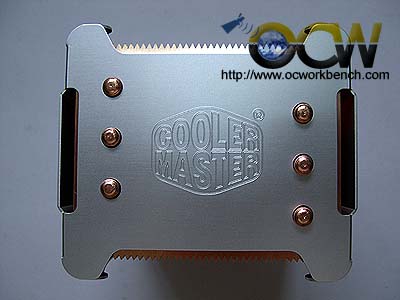

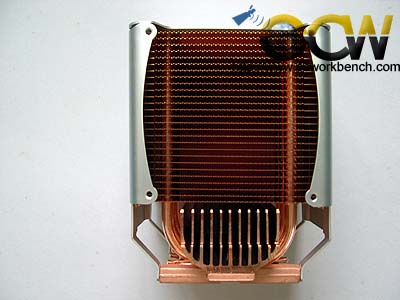

The heatink is viewed from various angles in this page. We can see the 6
heatpipes in the second photo.
-Six embedded
heat pipes provide superb heat dissipation.
-Special
heatsink design - maximum cooling performance at any mounted angle.
-Raised base
design to avoid interfering with components surrounding the CPU such as
capacitors and fan connectors.
-100% copper
fins and special welding techniques enable seamless connections between fins
and pipes.
-High-density
fins provide a large surface area for heat dissipation.
-Greater cooling
performance with optional high speed 80mm fan.
-Perfect for all
K8 and P4 CPUs.
Specs
Socket Type
AMD
K8 (socket 754/940) and Intel P4 (socket 478)
Heat
Sink Dimension
96x82x120 mm
Heat
Sink Material
6
heat pipes + 100% Copper stacked fin with copper base
Fan
Dimension
80x80x25 mm
Fan
Speed
1800
~ 3000 rpm
Fan
Life Expectance
40,000 hrs
Bearing Type
Rifle bearing
Voltage Rating
6 ~
12V
Noise Level
21 ~
34 dB(A)
Connector
4
Pin (Power Input), 3 Pin (Speed Detection)
Application
P4
all frequencies and K8

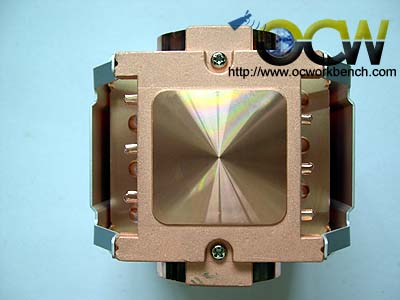

The coper based

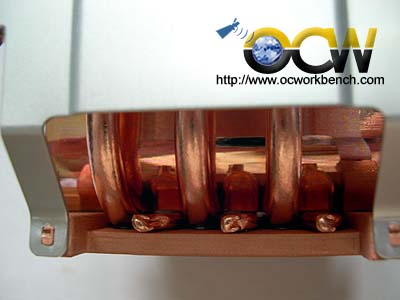

The copper heatpipe fins and the
mounting holes (on both side). One fan is provided for installation. In fact,
you can install two fans so that it will improve air flow.
