This year, CeBIT is more of a PCI-Express Show
since most manufacturers will be showcasing their PCI-E boards. On the other
hand, AMD Socket 939 boards are also something that everyone will be focusing
on.
Firstly, we will take a look at some of the
boards offered by Gigabyte.
GA-8I915P-D Pro Intel 915P
chipset, PCI-E, 4 SATA
Specification
CPU SupportPentium 4
CPU SocketLGA 775
ChipGrantsdale P
FSB800/533
Graphics InterfacePCI-Express x16
VGA -
Memory TypeDDRII 533/400
Memory Socket4 (Dual Channel)
Max Memory4GB
PCIPCI*2+PCI-Ex1*3
ATA connector4*SATA/ 1*PATA
RAIDN/A
Audio8-Channel AC97 + UAJ
13943
USB portUSB 2.0 X 8
LAN / IO shieldMarvell GbE LAN
Features
* DualBIOS
Software
* C.I.A. & M.I.B.2
* M.I.T. & S.O.S.
* Norton Internet Security 2004

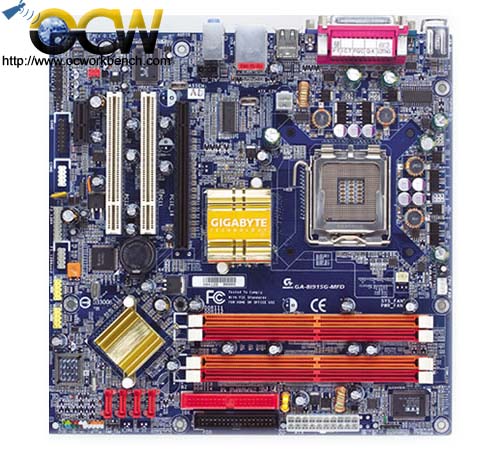

GA-8I915G-MFD i915G integrated
video, 4 SATA
Specification
CPU SupportPentium 4
CPU SocketLGA 775
ChipGrantsdale G
FSB800/533
Graphics InterfacePCI-Express x16
VGAIntegrated
Memory TypeDDRII 533/400(ECC)
Memory Socket4 (Dual Channel)
Max Memory4GB
PCIPCI*2+PCI-Ex1*1
ATA connector4*SATA/ 1*PATA
RAIDN/A
Audio8-Channel AC97 + UAJ
13943
USB portUSB 2.0 X 8
LAN / IO shieldRealtek GbE LAN
Software
*Xpress Install
*Xpress Recovery
*Norton Internet Security 2004
GA-8I915G-D Pro integrated 915G

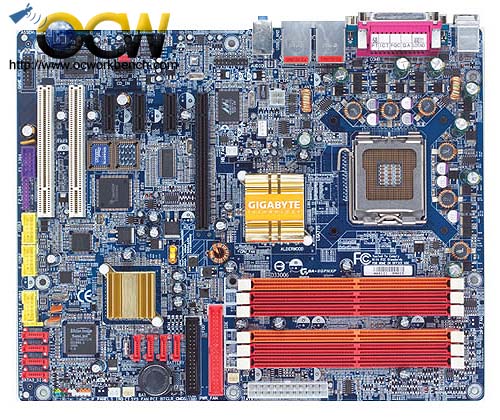

GA-8GPNXP-Duo
Specification
CPU SupportPentium 4
CPU SocketLGA 775
ChipGrantsdale G
FSB800/533
Graphics InterfacePCI-Express x16
VGA Integrated
Memory TypeDDRII 533/400
Memory Socket4 (Dual Channel)
Max Memory4GB
PCIPCI*2+PCI-Ex1*3
ATA connector4*SATA/ 1*PATA
RAIDN/A
Audio8-Channel AC97 + UAJ
13943
USB portUSB 2.0 X 8
LAN / IO shieldMarvell GbE LAN
Features
* DualBIOS
Software
* C.I.A. & M.I.B.2
* M.I.T. & S.O.S.
* Norton Internet Security 2004

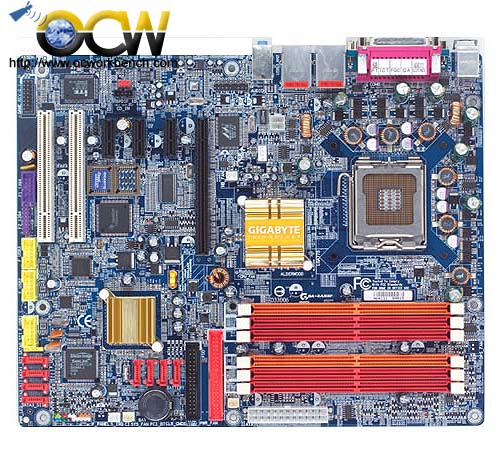

GA-8ANXP-D
Specification
CPU SupportPentium 4
CPU SocketLGA 775
ChipAlderwood
FSB800/533
Graphics InterfacePCI-Express x16
VGA -
Memory TypeDDRII 533/400(ECC)
Memory Socket6 (Dual Channel)
Max Memory4GB
PCIPCI*2+PCI-Ex1*3
ATA connector8*SATA/ 1*PATA
RAIDSATA RAID 0,1, 0+1
Audio8-Channel AC97 + UAJ
13943 (1394b)
USB portUSB 2.0 X 11
LAN / IO shieldMarvell GbE LAN
Features
* DPS
* Dual GbE LAN
* DualBIOS
Software
* C.I.A. & M.I.B.2
* M.I.T. & S.O.S.
* Norton Internet Security 2004
