CeBIT Day 1
Bluetooth 18 Mar 2004

This year, CeBIT is more of a PCI-Express Show since most manufacturers will be showcasing their PCI-E boards. On the other hand, AMD Socket 939 boards are also something that everyone will be focusing on.

Firstly, we will take a look at some of the boards offered by Gigabyte.

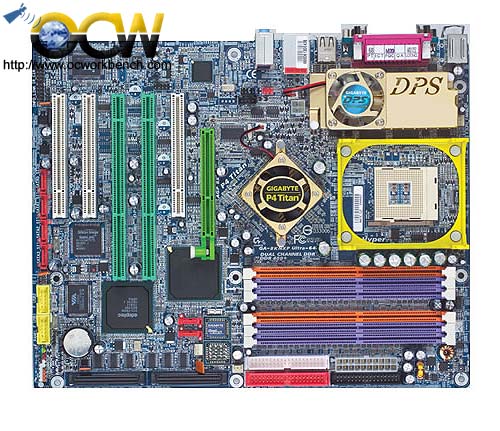

GA-8KNXP Ultra-64 875P mainboard with Adaptec SCSI, 4 SATA, DPS

Specification
CPU SupportPentium 4
CPU SocketSocket 478
Chip875P / ICH5R
FSB800/533/400
Graphics InterfaceAGP 8X
VGA -
Memory TypeDDR400/333
Memory Socket6 (Dual Channel)
Max Memory4GB
PCI3*PCI+2*PCI-X
ATA connector6*SATA/ 2*PATA/ 2*SCSI
RAIDSATA RAID 0,1, 0+1
Audio8-Channel AC97 + UAJ
1394N/A
USB portUSB 2.0 X 8
LAN / IO shieldIntel PRO/1000 CT
Features
* DPS-Gold
* DualBIOS
Software
*Xpress Install
*Xpress Recovery
*Norton Internet Security 2004

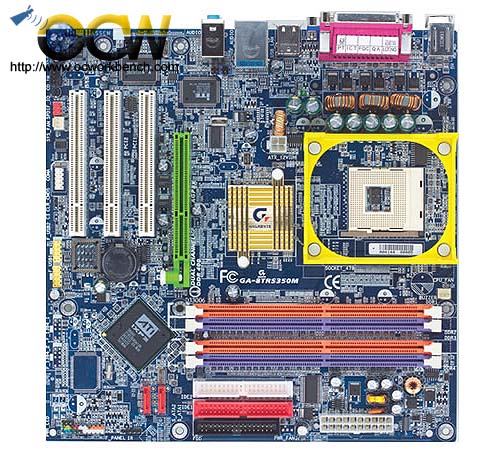

GA-8TRS350M based on ATI RS350 chipset, Socket 478 P4

Specification
CPU SupportPentium 4
CPU SocketSocket 478
ChipATI RS350/SB300
FSB800/533/400
Graphics InterfaceAGP 8X/4X
VGAintegrated
Memory TypeDDR400/333/266
Memory Socket4 (Dual Channel)
Max Memory4GB
PCI3
ATA connector2*SATA, 2*PATA 133
RAIDSATA RAID 0,1
Audio6 Channel AC97
1394N/A
USB portUSB 2.0 X 8
LAN / IO shield10/100 LAN
FeaturesXpress BIOS Rescue
Software
*Xpress Install
*Xpress Recovery
*EasyTune4
*Norton Internet Security 2004

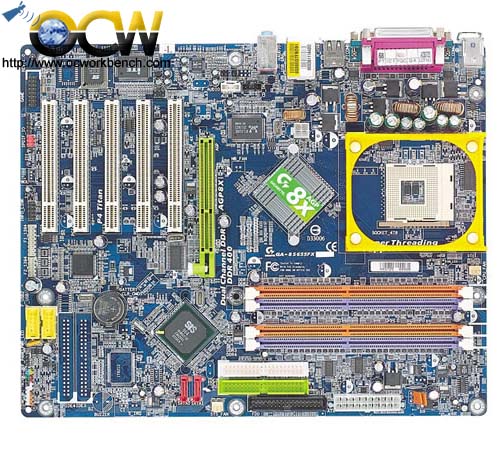

GA-8S655FX-L, SIS 655FX chipset

Specification
CPU SupportPentium 4
CPU SocketSocket 478
ChipSiS 655FX / SiS 964
FSB800/533/400
Graphics InterfaceAGP 8X/4X
VGA -
Memory TypeDDR400/333/266
Memory Socket4 (Dual Channel)
Max Memory4GB
PCI5
ATA connector2*SATA, 2*PATA 133
RAIDSATA RAID 0,1
Audio6 Channel AC97 + UAJ
13943
USB portUSB 2.0 X 8
LAN / IO shield10/100 LAN(GA-8S655FX-L)
FeaturesXpress BIOS Rescue
Software
*Xpress Install
*Xpress Recovery
*EasyTune4
*Norton Internet Security 2004
