SiS 748 Ref Mainboard Gallery
Bluetooth 2 June 2003

Gallery

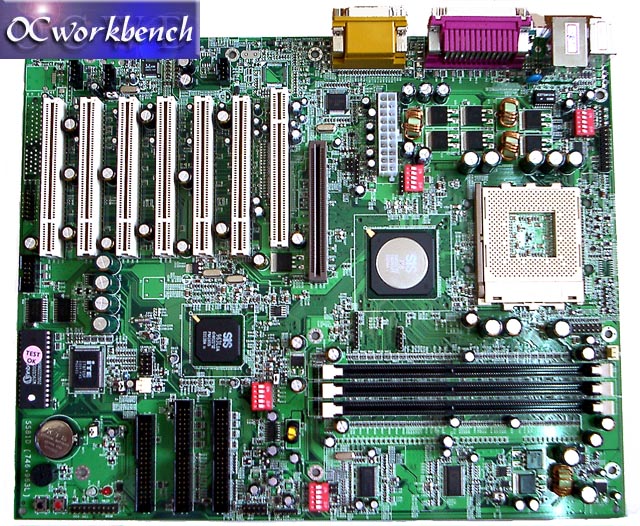

The SiS 748 or any of SiS reference boards are full sized boards which makes it a bit difficult for it to sit on the Senfu Housing Kit well. As most of the retail boards might change their design, we will not go into the details of the board. Basically, this board comes with no +12v connector like those on the P4 boards and some K7 boards. It seems to have incorporated a 3 phase design (to be confirmed) which makes it extremely stable. There is a 6 channel audio codec ALC650 on board. North Bridge is SiS 748, South Bridge is SIS 963L. This board supports up DDR-400/333/266 Memory with up to 2 DIMMs of DDR400, up to 3 DIMMs of DDR333/DDR266 (1 GB per DIMM with max. memory size up to 3 GB).
