SiS 748 Ref Mainboard Gallery 2
Bluetooth
2 June 2003

Gallery 2

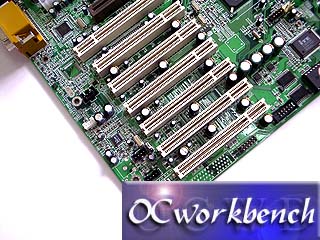

The Reference board has the conventional 6 PCI slots and 1 ACR slot which most retail boards will not implement the ACR since it is not widely used.

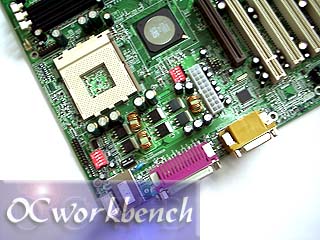

There are some dip switches which are undocumented. Over here we see the voltage regulator and a possible 3 phase design is implemented.

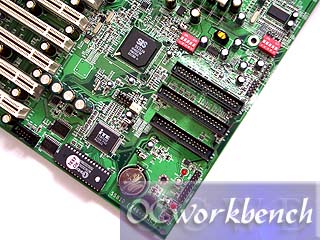

2 IDE channels supporting 4 HDD of ATA133. There are two buttons for PowerON and RESET which is a useful feature for testing boards.

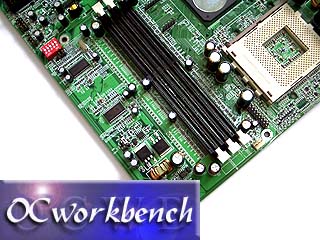

There are 3 DIMM slots support up to 3GB of RAM.

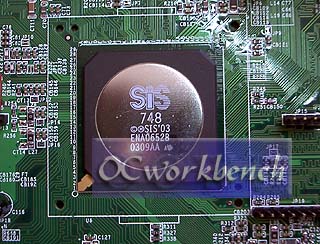

The new SiS 748 North Bridge which features Hyperstreaming technology for faster performance.

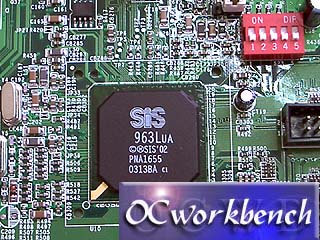

The 963L South bridge which takes care of the IDE interface, USB 2.0 ports etc. The North and South with 1GB/s bandwidth which is more than sufficient for the most demanding I/O. Sometimes I wonder why 963 is not used since it supports 1394. The SiS 180 that supports software RAID never makes it to the SIS 748 Ref board. It would be nice if retail boards support that.

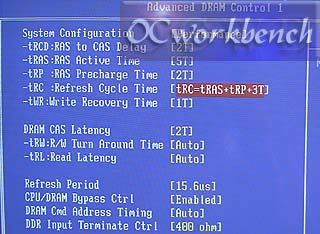

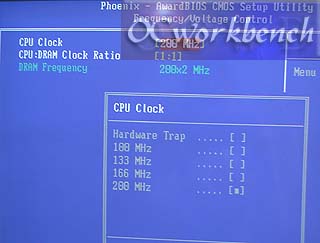

The SIS 748 reference board has many selections turned on which allows you to tune the BIOS to optimum performance. In our testing, we set it to the above configuration. CAS 2, 5-2-2. tRC is set to tRAS+tRP+3T to maintain stability. CAS timing is set to CAS 2. There are optional like R/W Turn Around time and Read Latency which we use AUTO. Setting it to Fast will result in system bootup failure. There are not much options available on the FSB and CPU:DRAM Clk. They are fixed. CPU Clock can only be selected from 100,133,166 and 200Mhz. CPU:DRAM Clock Ratios are basically the same 1:1,5:4 etc.
