EPoX 4PDA2+ i865PE Springdale Mainboard Gallery (2)
Bluetooth
21 Apr 2003

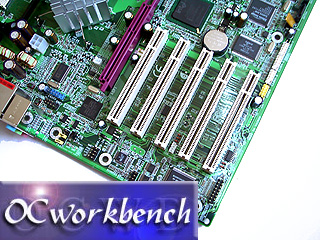

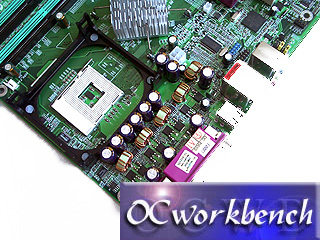

Top Right Corner of the mainboard. From here we can see 5 PCI slots and 1 AGP slot. The on board audio codec used is Cmedia 9739A. WINBOND W83627THF-A IO Controller chip is seen on the corner of the board. Broacom Gigabit Ethernet is on board.  The Socket 478 and the North Bridge. ICS 952607 is used for controlling the large range of FSB. (up to 400Mhz FSB selectable within BIOS)

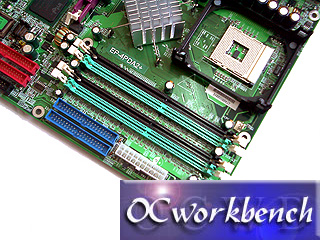

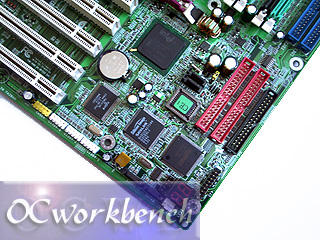

2 SATA RAID 0 (ICH5R), 2 channels of IDE RAID 0, 1, 0+1 supported by the Hightpoint HPT372 chipset. 2 SATA RAID 0 and 1 supported by SiliconImage SIL 3112A chipset. This is the only 865PE board that has 4 SATA raid ports. 4 DIMM slots supporting up to 4GB of DDR266/DDR333/DDR400 using 184pin unbuffered non ECC DDR allowing up to 6.4GB/s data transfer rate. Registered DIMMs are not supported.

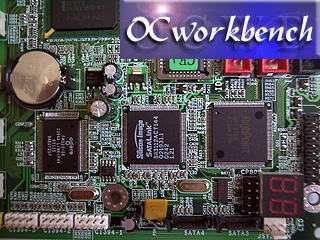

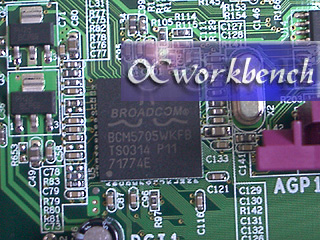

The Broadcom GigaBit Ethernet chipset 3 x IEEE 1394 ports supported by Agere chipset. The Sil3112A supports 2 SATA ports (RAID 0/1), The HPT372 supports two channels of IDE RAID 0/1/0+1. The the right bottom corner picture is the the famous DEBUG LED.
