EPoX 4PDA2+ i865PE Springdale Mainboard Gallery (3)
Bluetooth
21 Apr 2003

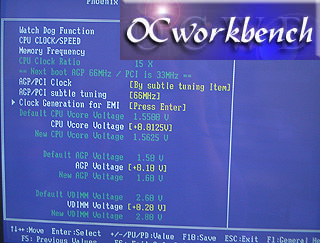

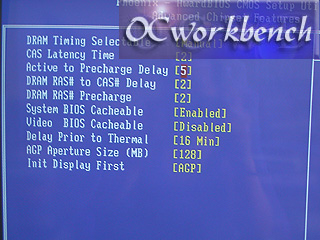

We set our ram settings to 2-5-2-2. Burst Length 8 clks. The only change we made is that we set AGP Aperture size to 128M. CPU FSB/Speed allows you to set the FSB your system will run at after reboot. The range is from 100 ~ 350 at 1Mhz stepping. AGP/PCI can be fixed at 66/33. CPU, DDR and AGP voltages are adjustable. In our test, we set performance mode to Turbo. There are only 3 options for cpu:mem ratios and they are 266, 320 and 400.

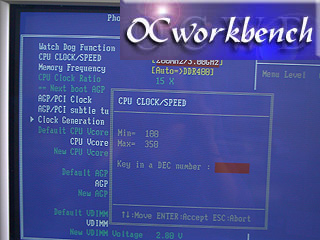

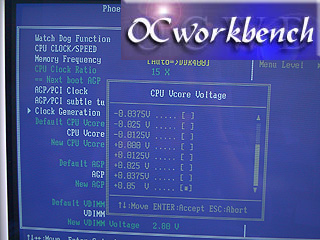

FSB Range selectable from 100 ~ 350MHz at 1MHz stepping. CPU Vcore Voltages are selectable up to +0.05v of default.

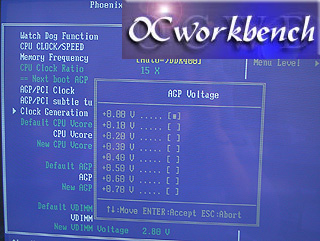

AGP voltage can be set up to +0.70 of default 1.5v

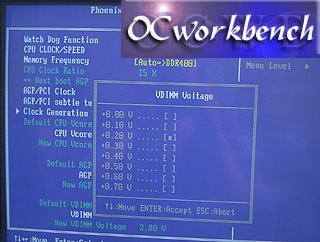

VDimm voltage can be selected up to +0.7v of default 2.5v

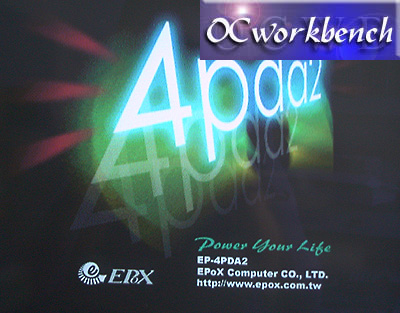

BIOS boot up screen
