Chaintech 9PJL i865PE Springdale Mainboard Gallery (2)
Bluetooth
21 Apr 2003



Top Right Corner of the mainboard. From here we can see 5 PCI slots and 1 AGP slot. The on board audio codec used is Cmedia 9738. iTE I/O controller chip. Realtek 10/100Mbps LAN chip on board. The Socket 478 and the North Bridge. ICS 952607 is used for controlling the large range of FSB. Golden colours connectors looks good on black PCB.

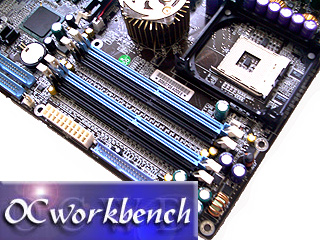

This is the only board we test that uses ICH5 instead of ICH5R. There are 2 SATA ports available (ICH5 - no RAID), 2 channels of IDE. This board does not come with any RAID on SATA or IDE. 4 DIMM slots supporting up to 4GB of DDR266/DDR333/DDR400 using 184pin unbuffered non ECC DDR allowing up to 6.4GB/s data transfer rate. Registered DIMMs are not supported.

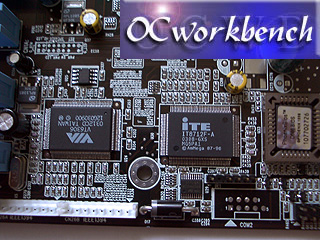

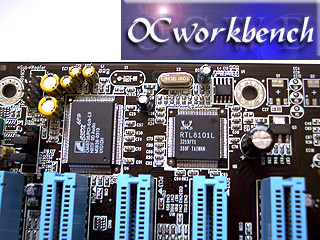

VT6306 supports 3 x IEEE 1394 ports. iTE I/O controller chipset IT8712F-A is used on board. Cmedia 8738 6 channel audio chipset and Realtek RTL 8101L 10/100Mbps Ethernet chip.
