Chaintech 9PJL i865PE Springdale Mainboard Gallery (3)
Bluetooth
21 Apr 2003

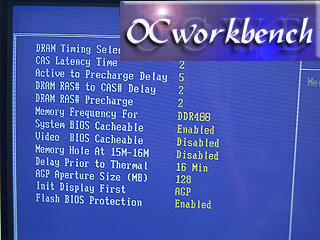

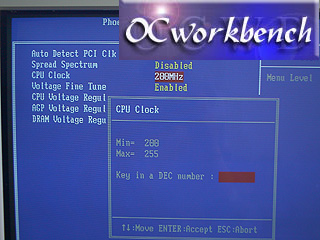

CPU clock (FSB) can be adjusted from 100 ~ 255 depending on the CPU inserted. We set our ram settings to 2-5-2-2. The only change we made is that we set AGP Aperture size to 128M. Memory Frequency is set to DDR400. Choice are DDR266, DDR320 and DDR400.

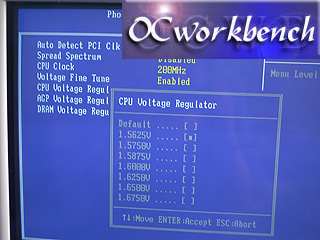

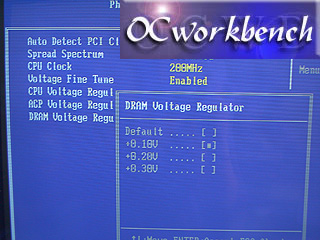

CPU Voltage can be set as default or up to 1.675v. A wider range up to 1.85v would be better. DRAM Voltage is selectable up to +0.3v of default.

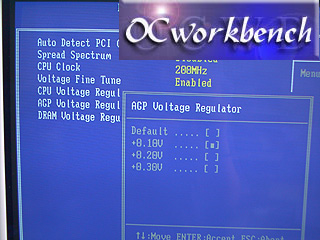

AGP Voltage can be set up to 0.3v of default.
