Gigabyte GO-M1600A Multimedia 16x DVD-ROM Drive with integrated FM/MP3 playback Gallery (2)
Overclocker 2 Nov 2003

Also visit the Gigabyte Forum for all Gigabyte support

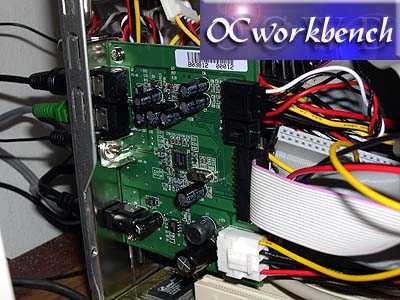

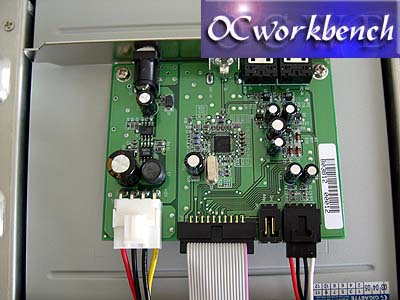

The daughter card connectors. From left to right : 12v Power connector connecting to the DVD-ROM drive. The ribbon connector connects to the DVD-ROM and the 4 pin plug connects to the CD-IN on the mainboard or sound card.	The card is screwed onto one of the empty slot of the mainboard. There are 3 connectors at the card. One is for FM Antenna, One is for connecting to your Front Spks and the other is for Line In from your existing sound card.

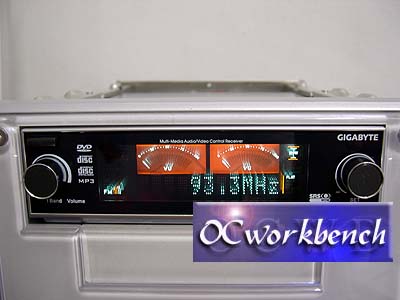

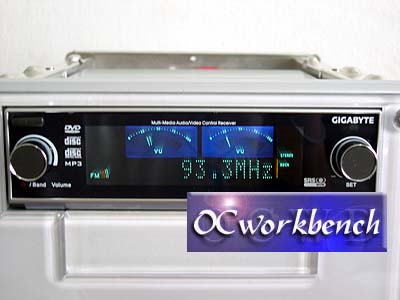

When PC is not turned on, the Blue LED is displayed and in this case, you can use the press the left knob to switch between FM RADIO or CD playback.	This is when PC is powered up, the backlit becomes orange in colour. Press the left knob gives you only two selections of FM Tuner and PC Sound (for playback of DVD, CD Audio etc through software).

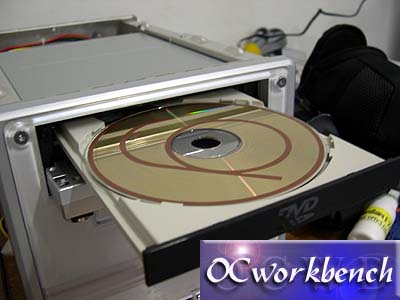

Audio CD ejected out from the tray (behind the front panel). This Drive is real quiet compared to my other DVDROM or CDROM drives.	A close up view of the VU meter which glows in dark.
