Gigabyte GO-M1600A Multimedia 16x DVD-ROM Drive with integrated FM/MP3 playback Review (2)
Overclocker 2 Nov 2003

Remember to visit our Chinese edition of OCW at http://www.ocworkbench.com/chinese.stm bookmark it today. Also visit the Gigabyte Forum for all Gigabyte support

Test Environment

• Shuttle SS40 SFF
• AXP 2400+ running SPD, 512M Winbond BH6 DDR333

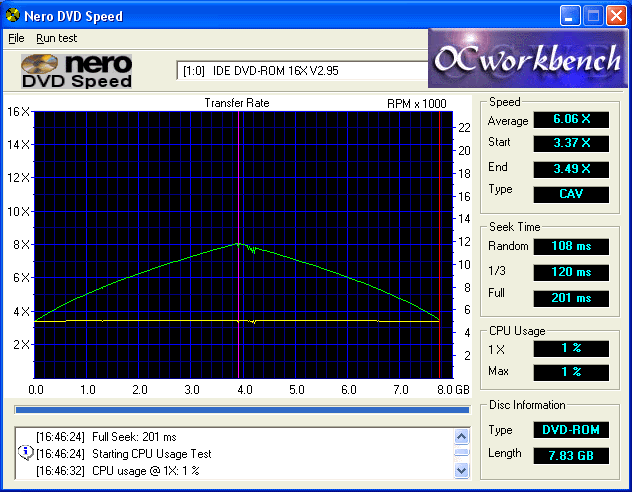

Benchmark - DVDSpeed (Dual Layer DVD)

We used a Dual Layer DVD-ROM with a space of 7.83GB. It is apparent from the chart that the maximum reach is around 8X. This is normal as it is indicated on the cdspeed2000 site that this is always the case as it takes longer to read this sort of discs.

The seek time are all within the specifications posted on the specs. In fact, the tests shows a slightly faster speed than speced.  CPU Usage is exceptionally low at 1% even at MAX. Burst Rate is 1.11 MB/s

Nero DVD Speed

04 November 2003 - 8:52:51

Drive information
Vendor IDE
Product DVD-ROM 16X
Firmware Version 2.95

Disc information
Type DVD-ROM
Length 7.83 GB

Test results

Transfer rate
Average 6.06 X
Start 3.37 X
End 3.49 X
Reading type CAV

Seek Times
Random Seek 108 ms
1/3 Seek 120 ms
Full Seek 201 ms

CPU usage
1X 1 %
Max Speed 1 %

Interface
Burst Rate 1.11 MB/s

Spin Up/Down Time
Spin Up Time 2.79 sec
Spin Down Time 1.35 sec

Disc Eject Time 3.48 sec
Disc Load Time 1.45 sec
Disc Recognition Time 0.14 sec

Next >>>
