Benchmark - CDSpeed (Audio CD - Kenny G Gold)
Using a Audio-CD from KennyGrestest Hits Audio CD
(disc 1 of 2) - 76 minutes. We tested the drive using this CD and we found that
the drive could only reach a max of 32x. The Seek times are at random is spec at
100ms but we are getting 89ms. The CPU usage is alow very low. DAE Quality is
BEST at 10. Burst Rate is at 1MB/s.

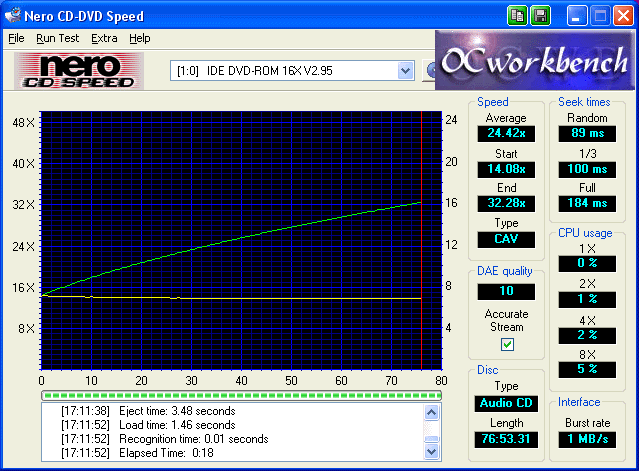

Nero CD Speed Test results
General Information Operating System
Windows XP Professional Drive
IDE DVD-ROM 16X Firmware Version
2.95 Serial Number Disc
Audio CD Capacity
76:53.31
Transfer Rate Start
14.08x End
32.28x Average
24.42x Type
CAV
DAE Quality Quality
10 Accurate Stream
Yes
Seek Times Random
89 ms 1/3
100 ms Full
184 ms
CPU Usage 1X
0 % 2X
1 % 4X
2 % 8X
5 %
Interface Burst Rate
1083 KB/sec
Spin Up/Down Times Spin Up Time
2.54 sec Spin Down Time
1.71 sec
Load/Eject Times Load Time
1.46 sec Eject Time
3.48 sec Recognition Time
0.01 sec
Log Time
Elapsed
Action [17:05:52]
Starting Transfer Rate Test [17:09:09]
3:18
Speed:14-32 X CAV (24.42 X average) [17:09:09]
Starting DAE Quality Test [17:09:16]
Total errors: 0 (0.000 %) [17:09:16]
DAE Quality: 10 [17:09:26]
0:17
Accurate Stream: Yes [17:09:26]
Starting Seek Times Test [17:09:36]
Random Seek: 89 ms [17:09:46]
1/3 Seek: 100 ms [17:10:04]
0:38
Full Seek: 184 ms [17:10:04]
Starting CPU Usage Test [17:10:19]
CPU usage at 1X: 0 % [17:10:34]
CPU usage at 2X: 1 % [17:10:49]
CPU usage at 4X: 2 % [17:11:04]
1:00
CPU usage at 8X: 5 % [17:11:04]
Starting Burst Rate Test [17:11:18]
0:14
Interface burst rate: 1 MB/sec (1083 KB/sec) [17:11:18]
Starting Spin-Up/Down Test [17:11:22]
Spin-up time: 2.54 seconds [17:11:34]
0:16
Spin-down time: 1.71 seconds [17:11:34]
Starting Load/Eject Test [17:11:38]
Eject time: 3.48 seconds [17:11:52]
Load time: 1.46 seconds
